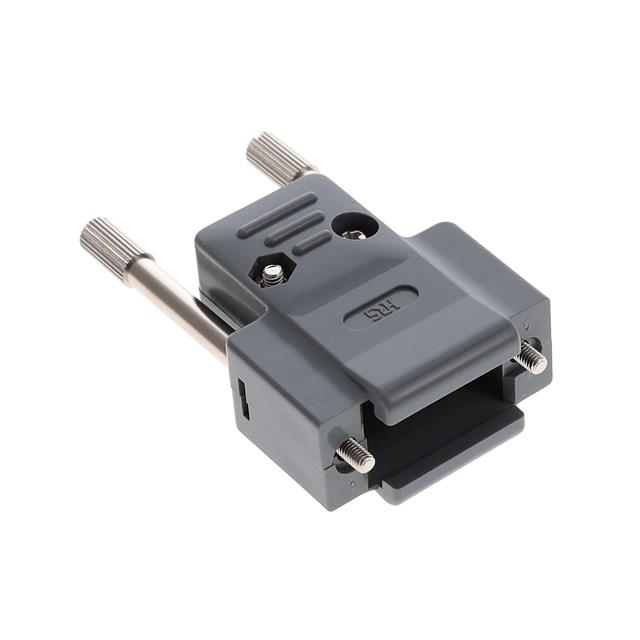

HDE-CTF1(50)

Active

Hirose Electric USA, Inc.

BACKSHELL D-SUB DATAPHONE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDE-CTF1(50)

Active

Hirose Electric USA, Inc.

BACKSHELL D-SUB DATAPHONE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDE-CTF1(50)

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Gray
Features	Mating Screws M2.6
Hardware	Assembly Hardware
Material	Acrylonitrile Butadiene Styrene (ABS)
Number of Positions	9
Primary Material	Plastic
Shielding	Unshielded

HDE Series

Part	Cable Type	Primary Material	Cable Exit	Accessory Type	Hardware	Number of Positions	Features	Shielding	Material	Color	For Use With/Related Products	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Flange Feature	Connector Style	Dielectric Material	Contact Finish	Voltage Rating	Contact Material	Connector Type	Shell Material, Finish	Contact Type	Material Flammability Rating	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Plating
Hirose Electric USA, Inc. HDE-9P(50)
Hirose Electric USA, Inc. HDE-CTF1(4-40)(50)	Round	Plastic	180 °	Two Piece Backshell	Assembly Hardware	9	Mating Screws 4-40	Unshielded	Acrylonitrile Butadiene Styrene (ABS)
Hirose Electric USA, Inc. HDE-CTH(19)
Hirose Electric USA, Inc. HDE-9S(50)
Hirose Electric USA, Inc. HDE-CTF(50)	Round	Plastic	180 °	Two Piece Backshell	Assembly Hardware	9	Mating Screws M2.6	Unshielded	Acrylonitrile Butadiene Styrene (ABS)	Gray
Hirose Electric USA, Inc. HDE-C(50)				Cable Clamp		9					D-Sub Connectors
Hirose Electric USA, Inc. HDEB-9S(57)
Hirose Electric USA, Inc. HDEB-9PF(05)						9	Grounding Indents			Black		DE E	1	2	Housing/Shell (Unthreaded)	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Gold	400 V	Copper Alloy	Male Pins Plug	Nickel Plated Steel	Signal	UL94 V-0	Stamped	85 °C	-40 °C	3 A
Hirose Electric USA, Inc. HDE-CTF1(50)	Round	Plastic	180 °	Two Piece Backshell	Assembly Hardware	9	Mating Screws M2.6	Unshielded	Acrylonitrile Butadiene Styrene (ABS)	Gray
Hirose Electric USA, Inc. HDE-CTH(4-40)(10)	Round	Plastic	180 °	Two Piece Backshell	Assembly Hardware	9	Mating Screws 4-40	Unshielded	Acrylonitrile Butadiene Styrene (ABS)	Silver																			Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.15
		20	$ 9.14
		40	$ 8.39
		100	$ 8.17
		260	$ 7.28
		500	$ 6.84
		1000	$ 6.05

Description

General part information

HDE Series

9 Position Two Piece Backshell Connector Gray 180° Unshielded
