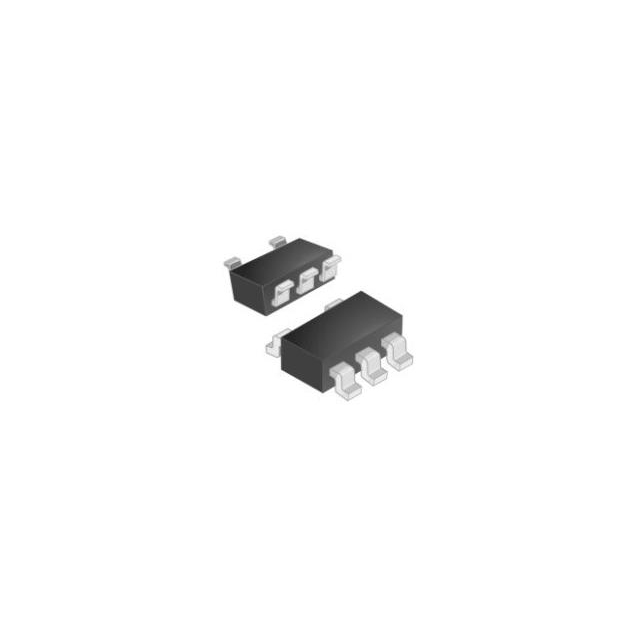

GLF1501
ActiveGLF Integrated Power
3A N-CHANNEL LOAD SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
GLF1501
ActiveGLF Integrated Power
3A N-CHANNEL LOAD SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GLF1501 |
|---|---|
| Current - Output (Max) [Max] | 3 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | SC-74A, SOT-753 |
| Rds On (Typ) | 52 mOhm |
| Supplier Device Package | SOT-23-5 |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 0.85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10 | $ 0.39 | |
| 20 | $ 0.34 | |||
| 30 | $ 0.31 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.14 | |||
| 3000 | $ 0.13 | |||
| 6000 | $ 0.12 | |||
Description
General part information
GLF1501 Series
Power Switch/Driver N-Channel 3A SOT-23-5
Documents
Technical documentation and resources
No documents available
