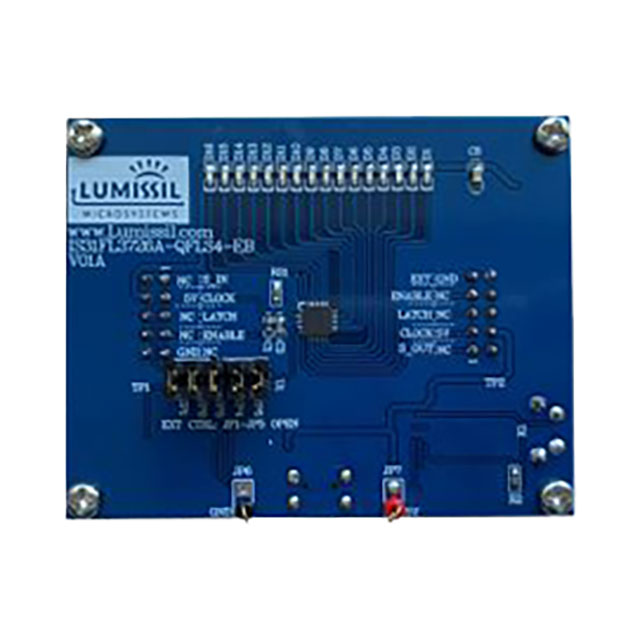

IS31FL3726A-QFLS4-EB

Active

Lumissil Microsystems

EVAL BOARD FOR IS31FL3726A

Search across all available documentation for this part.

Active

Lumissil Microsystems

EVAL BOARD FOR IS31FL3726A

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output / Channel	Voltage - Supply (Max)	Voltage - Output	Type	Applications	Voltage - Supply (Min) [Min]	Topology	Package / Case	Package / Case	Package / Case [y]	Supplier Device Package	Mounting Type	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Number of Outputs	Features	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Current - Output / Channel [custom]
Lumissil Microsystems IS31FL3726-ZLS2	60 mA	5.5 V	4 V	Linear	Backlight	3.3 V	Shift Register	0.173 in	24-TSSOP Exposed Pad	4.4 mm	24-TSSOP	Surface Mount	20 MHz	85 °C	-40 °C	PWM	16
Lumissil Microsystems IS31FL3726-QFLS2-TR	60 mA	5.5 V	4 V	Linear	Backlight	3.3 V	Shift Register		24-VFQFN Exposed Pad		24-QFN (4x4)	Surface Mount	20 MHz	85 °C	-40 °C	PWM	16
Lumissil Microsystems IS31FL3726-ZLS2-TR	60 mA	5.5 V	4 V	Linear	Backlight	3.3 V	Shift Register	0.173 in	24-TSSOP Exposed Pad	4.4 mm	24-eTSSOP	Surface Mount	20 MHz	85 °C	-40 °C	PWM	16
Lumissil Microsystems IS31FL3726A-QFLS4-EB	60 mA																	Dimmable	16	Non-Isolated	Board(s)	5.5 V	3 V	IS31FL3726A
Lumissil Microsystems IS31FL3726A-SALS4-TR		5.5 V	5 V	Linear	Signage	3 V	Shift Register		24-SSOP		24-SSOP	Surface Mount		125 °C	-40 °C		16								25.2 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 52.50

General part information

IS31FL3726A 16, Non-Isolated Outputs LED Driver Evaluation Board

Technical documentation and resources

No documents available
