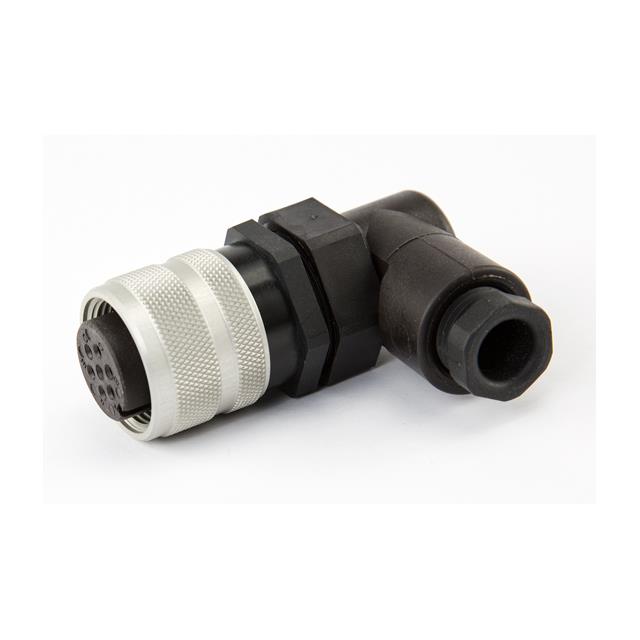

C01530F0060011

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 7P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 7P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	C01530F0060011

Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Features	Backshell
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Material	Aluminum
Voltage Rating	75 VDC

Part	Orientation	Connector Type	Number of Positions	Primary Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Features	Shell Material	Mounting Type	Contact Finish - Mating	Ingress Protection
Amphenol Tuchel Industrial C01530F0060011	Keyed	Female Sockets Plug	7	Metal	75 VDC	100 °C	-40 °C	Backshell	Aluminum	Free Hanging (In-Line) Right Angle	Silver	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources

No documents available
