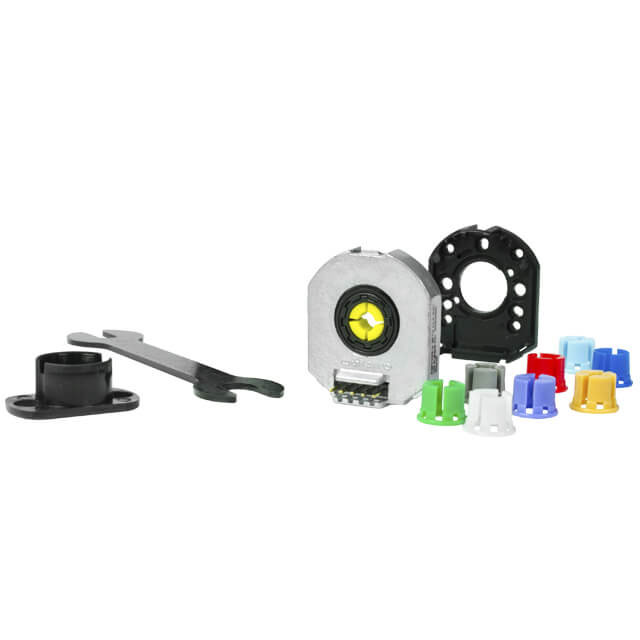

AMT102-0512-I5000-S

Active

CUI Devices

AMT INCR, MOD, CAP, 512 PPR, 3.6

Search across all available documentation for this part.

Active

CUI Devices

AMT INCR, MOD, CAP, 512 PPR, 3.6

Technical Specifications

Parameters and characteristics for this part

Specification	AMT102-0512-I5000-S

Actuator Type	Open Center
Actuator Type	5 mm
Built in Switch	False
Detent	False
Encoder Type	Incremental
Mounting Type	Chassis Mount, Motors
Orientation	Vertical
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	512
Termination Style	Terminal Pins
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3.6 V

Part	Pulses per Revolution	Detent	Encoder Type	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Orientation	Built in Switch	Output Type	Actuator Type	Actuator Type [Max]	Actuator Type [Min]	Mounting Type	Actuator Type	Pulses per Revolution
CUI Devices AMT102-V	Programmable		Incremental	Terminal Pins	3.6 V	5.5 V	Vertical		Quadrature with Index (Incremental)	Open Center	8 mm	2 mm	Chassis Mount Motors
CUI Devices AMT102-0512-I5000-S			Incremental	Terminal Pins	3.6 V	5.5 V	Vertical		Quadrature with Index (Incremental)	Open Center			Chassis Mount Motors	5 mm	512

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 19.32

General part information

Rotary Encoder Incremental 512 Quadrature with Index (Incremental) Vertical
