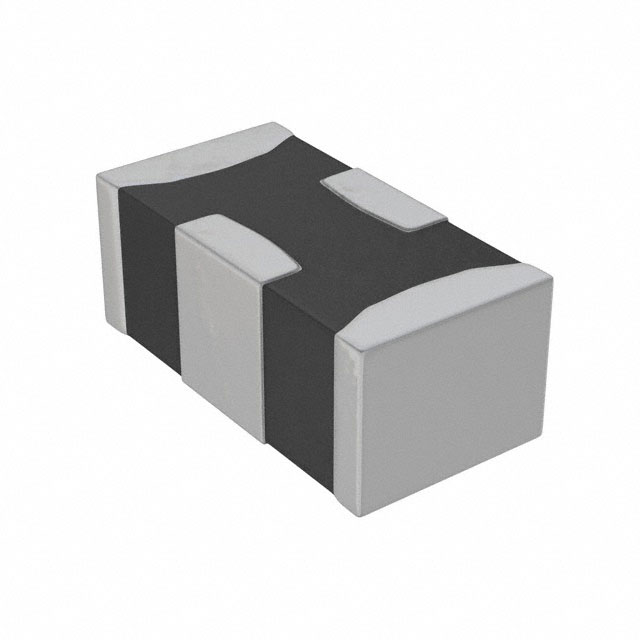

NFM31PC276B0J3L
ActiveMurata Power Solutions Inc.
CAP FEEDTHRU 27UF 20% 6.3V 1206
Deep-Dive with AI
Search across all available documentation for this part.
NFM31PC276B0J3L
ActiveMurata Power Solutions Inc.
CAP FEEDTHRU 27UF 20% 6.3V 1206
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NFM31PC276B0J3L |
|---|---|
| Capacitance | 27 µF |
| Current | 6 A |
| DC Resistance (DCR) (Max) [Max] | 5 mOhm |
| Height (Max) [Max] | 1.5 mm |
| Height (Max) [Max] | 0.059 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3 Lead |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 10 | $ 0.88 | |||
| 25 | $ 0.71 | |||
| 50 | $ 0.64 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.47 | |||
| Digi-Reel® | 1 | $ 0.90 | ||
| 10 | $ 0.88 | |||
| 25 | $ 0.71 | |||
| 50 | $ 0.64 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.47 | |||
| Tape & Reel (TR) | 3000 | $ 0.44 | ||
| 6000 | $ 0.41 | |||
| 15000 | $ 0.39 | |||
Description
General part information
NFM31PC Series
27 µF Feed Through Capacitor 6.3V 6 A 5mOhm 1206 (3216 Metric), 3 PC Pad
Documents
Technical documentation and resources
