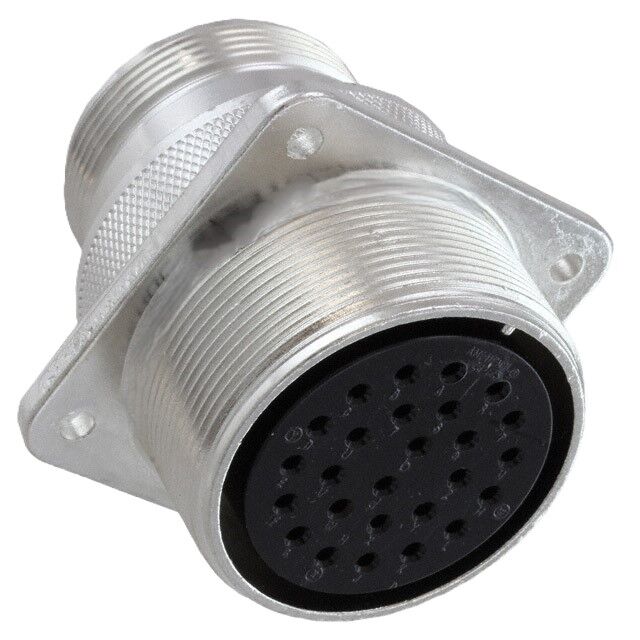

D38999/24WH21SA
ActiveCorsair
RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/24WH21SA
ActiveCorsair
RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/24WH21SA |
|---|---|
| Applications | Aviation, Marine, Military, Aerospace |
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Features | Self Locking |
| Grade | Military |
| Ingress Protection | Weathertight, IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 21 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Orientation | A |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 23 |
| Shell Size - Insert [Min] | 21 |
| Shell Size, MIL | H |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 500 VAC |
D38999/24WH Series
| Part | Color | Mounting Feature | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Termination | Number of Positions | Connector Type | Orientation | Contact Finish - Mating | Ingress Protection | Note | Contact Size | Shell Finish | Shell Material | Insert Material | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Grade | Contact Type | Qualification | Housing Color | Shell Size, MIL | Type | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Primary Material | Current Rating (Amps) | Voltage Rating | Material Flammability Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Corsair | ||||||||||||||||||||||||||||||||||
Corsair | Olive Drab | Bulkhead - Front Side Nut | 23 | 55 | Crimp | 55 positions | Male Pins Receptacle | A | Gold | |||||||||||||||||||||||||
Corsair | Bulkhead - Front Side Nut | 21 | 23 | 21 | Receptacle Housing | A | Environment Resistant | Contacts Not Included | 16 | Cadmium | Aluminum | Thermoplastic | Unshielded | -65 ░C | 347 °F | Circular | Military | Crimp | MIL-DTL-38999 Series III | Olive Drab | H | For Female Sockets | ||||||||||||
Corsair | Olive Drab | Bulkhead - Front Side Nut | 23 | 35 | Crimp | 100 | Receptacle Female Sockets | A | Gold | IP67 - Dust Tight Waterproof | Olive Drab Cadmium | Aluminum | Thermoplastic | Shielded | -65 ░C | 347 °F | H | Aviation Marine Military | 1.27 µm | 50 µin | Copper Alloy | Metal | 5 A | |||||||||||
Corsair | Olive Drab | Bulkhead - Front Side Nut | 21 | 23 | Crimp | 21 | Receptacle Female Sockets | A | Gold | IP67 - Dust Tight Waterproof Weathertight | Olive Drab Cadmium | Aluminum | Thermoplastic | Shielded | -65 ░C | 347 °F | Military | MIL-DTL-38999 Series III | H | Aerospace Aviation Marine Military | 1.27 µm | 50 µin | Copper Alloy | Metal | 13 A | 500 VAC | UL94 V-0 | Self Locking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 74.87 | |
| 25 | $ 70.20 | |||
| 250 | $ 64.18 | |||
| 1000 | $ 59.91 | |||
| Box | 2 | $ 111.07 | ||
| 10 | $ 102.18 | |||
| 50 | $ 94.01 | |||
| 100 | $ 86.49 | |||
| 500 | $ 79.57 | |||
| Bulk | 50 | $ 334.72 | ||
Description
General part information
D38999/24WH Series
21 Position Circular Connector Receptacle, Female Sockets Crimp
