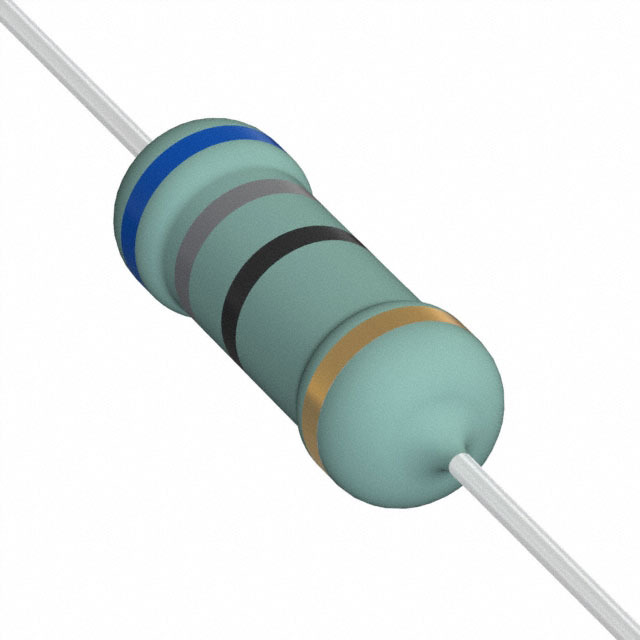

EP1WS68RJ
ActiveTE Connectivity Passive Product
RES 68 OHM 5% 1W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EP1WS68RJ
ActiveTE Connectivity Passive Product
RES 68 OHM 5% 1W AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EP1WS68RJ |
|---|---|
| Composition | Wirewound |
| Features | Pulse Withstanding, Flame Retardant Coating, Safety |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 1 W |
| Resistance | 68 Ohms |
| Size / Dimension [diameter] | 0.138 in |
| Size / Dimension [diameter] | 3.5 mm |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Supplier Device Package | Axial |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.08 | |||
| Tape & Box (TB) | 1000 | $ 0.06 | ||
| 2000 | $ 0.06 | |||
| 5000 | $ 0.05 | |||
| 10000 | $ 0.05 | |||
| 25000 | $ 0.05 | |||
| 50000 | $ 0.05 | |||
| 100000 | $ 0.04 | |||
Description
General part information
EP1W Series
68 Ohms ±5% 1W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Wirewound
