CMS-3520-18N
ActiveCUI Devices

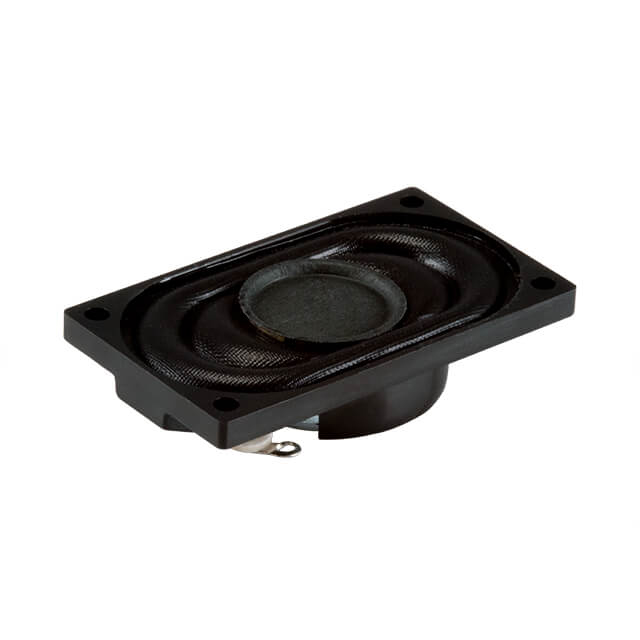

SPEAKER 8OHM 1W TOP PORT 85DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMS-3520-18N
ActiveCUI Devices
SPEAKER 8OHM 1W TOP PORT 85DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS-3520-18N |
|---|---|
| Distortion Rating [Max] | 10 % |
| Efficiency - dBA | 85 dBA |
| Efficiency - Testing | 1 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 700 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 700 Hz |
| Height - Seated (Max) [Max] [z] | 0.299 in |
| Height - Seated (Max) [Max] [z] | 7.6 mm |
| Impedance | 8 Ohms |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 1.5 W |
| Power - Rated | 1 W |
| Shape | Oval, Rectangular Frame |
| Size / Dimension [x] | 35 mm |
| Size / Dimension [x] | 1.378 " |
| Size / Dimension [y] | 0.787 in |
| Size / Dimension [y] | 20 mm |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.05 | |
| 10 | $ 2.52 | |||
| 25 | $ 2.45 | |||
Description
General part information
CMS-3520 Series
8 Ohms General Purpose Speaker 1 W 700 Hz ~ 10 kHz Top Oval, Rectangular Frame
