WP27D-P010VA3-R15000

Active

JAE Electronics

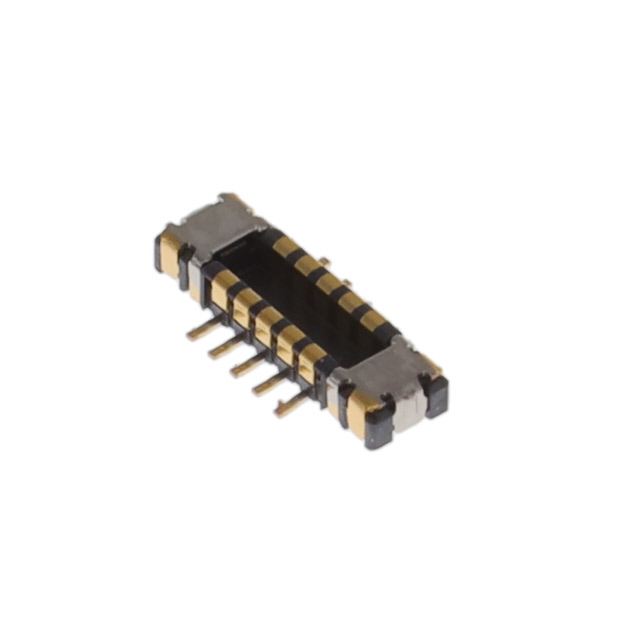

CONN PLUG 10POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 10POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Features	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Height Above Board	Height Above Board	Mated Stacking Heights
JAE Electronics WP27D-P024VA3-R15000	24	4 Áin	0.1 Ám	Gold	Outer Shroud Contacts Plug	Solder Retention	0.35 mm	0.014 in	2	Surface Mount	0.57 mm	0.022 in	0.7 mm
JAE Electronics WP27D-P034VA3-R15000	34	4 Áin	0.1 Ám	Gold	Outer Shroud Contacts Plug	Solder Retention	0.35 mm	0.014 in	2	Surface Mount	0.57 mm	0.022 in	0.7 mm
JAE Electronics WP27D-P030VA3-R15000	30	4 Áin	0.1 Ám	Gold	Outer Shroud Contacts Plug	Solder Retention	0.35 mm	0.014 in	2	Surface Mount	0.57 mm	0.022 in	0.7 mm
JAE Electronics WP27D-P038VA1-R15000	38	4 Áin	0.1 Ám	Gold	Outer Shroud Contacts Plug	Solder Retention	0.35 mm	0.014 in	2	Surface Mount	0.57 mm	0.022 in	0.7 mm
JAE Electronics WP27D-P040VA3-R15000	40	4 Áin	0.1 Ám	Gold	Outer Shroud Contacts Plug	Solder Retention	0.35 mm	0.014 in	2	Surface Mount	0.57 mm	0.022 in	0.7 mm
JAE Electronics WP27D-P030VA1-R15000	30	4 Áin	0.1 Ám	Gold	Outer Shroud Contacts Plug	Solder Retention	0.35 mm	0.014 in	2	Surface Mount	0.57 mm	0.022 in	0.7 mm
JAE Electronics WP27D-P010VA3-R15000	10	4 Áin	0.1 Ám	Gold	Outer Shroud Contacts Plug	Solder Retention	0.35 mm	0.014 in	2	Surface Mount	0.57 mm	0.022 in	0.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
