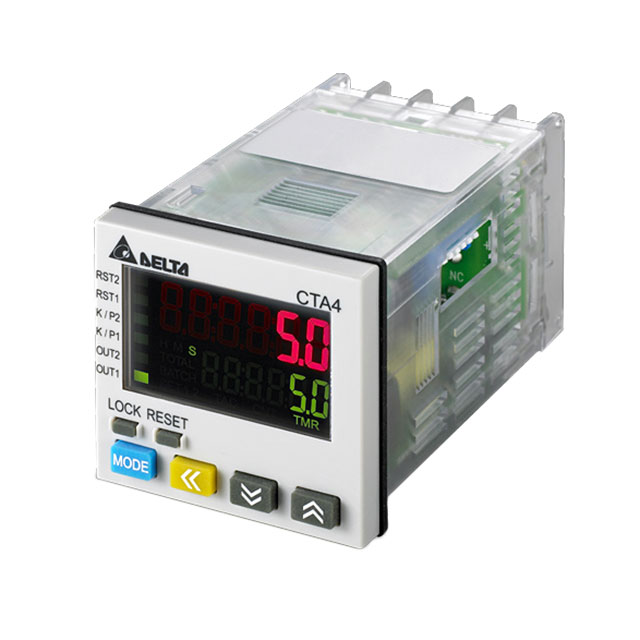

CTA4001A
Delta Electronics/Industrial Automation
OUTPUT 2: NPN / RS-485, AC 100-2
Deep-Dive with AI
Search across all available documentation for this part.
CTA4001A
Delta Electronics/Industrial Automation
OUTPUT 2: NPN / RS-485, AC 100-2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CTA4001A |
|---|---|
| Count Rate | Multiple |
| Display Type | LCD - Dual Color Characters, Backlight |
| Input Type | No Voltage, Voltage |
| Number of Characters Per Row | 6 |
| Number of Characters Per Row | 6 |
| Operating Mode | Up, Down |
| Output Type | Solid State |
| Panel Cutout Dimensions [x] | 45 mm |
| Panel Cutout Dimensions [y] | 45 mm |
| Termination Style | Screw Terminal |
| Time Format | Multiple |
| Type | Tachometer, Timer, Preset, Batch, Totalizer |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 133.35 | |
| 20 | $ 125.94 | |||
| 40 | $ 111.13 | |||
Description
General part information
CTA4001 Series
Batch, Preset, Tachometer, Timer, Totalizer 100 ~ 240VAC Panel Mount
Documents
Technical documentation and resources
No documents available
