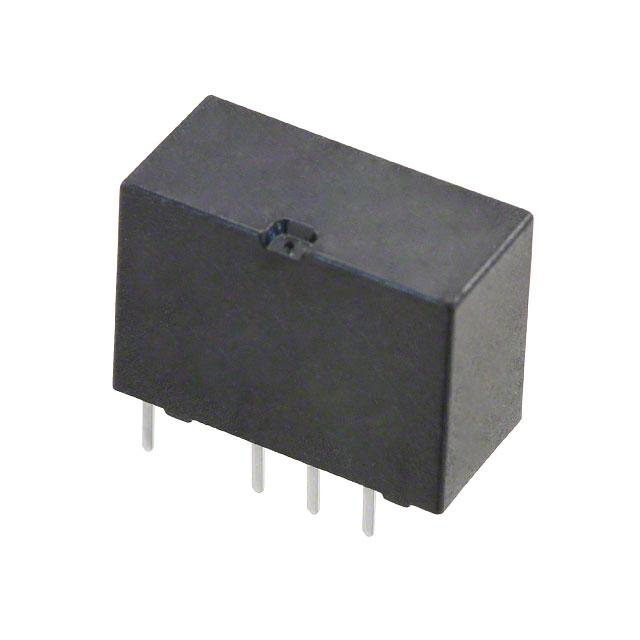

RELAY TELECOM DPDT 2A 12V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPDT 2A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	D3226

Coil Current	6.7 mA
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Palladium (Pd), Gold (Au), Ruthenium (Ru)
Contact Rating (Current)	2 A
Load - Max Switching	440 W, 500 VA
Mounting Type	Through Hole
Must Operate Voltage	8.4 VDC
Must Release Voltage	1.2 VDC
Operate Time	4 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	3 ms
Switching Voltage	250 VAC, 220 VDC
Termination Style	PC Pin

Part	Operate Time	Contact Material	Must Operate Voltage	Relay Type	Switching Voltage	Contact Rating (Current)	Coil Type	Termination Style	Load - Max Switching	Mounting Type	Contact Form	Release Time	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Must Release Voltage	Coil Voltage
TE Connectivity Potter & Brumfield Relays D3221	4 ms	Gold (Au) Palladium (Pd) Ruthenium (Ru)	2.1 VDC	Telecom	220 VDC 250 VAC	2 A	Non Latching	PC Pin	440 W 500 VA	Through Hole	DPDT (2 Form C)	3 ms	26.7 mA	85 °C	-40 °C	113 Ohms	0.3 VDC
TE Connectivity Potter & Brumfield Relays D3226	4 ms	Gold (Au) Palladium (Pd) Ruthenium (Ru)	8.4 VDC	Telecom	220 VDC 250 VAC	2 A	Non Latching	PC Pin	440 W 500 VA	Through Hole	DPDT (2 Form C)	3 ms	6.7 mA	85 °C	-40 °C		1.2 VDC	12 VDC
