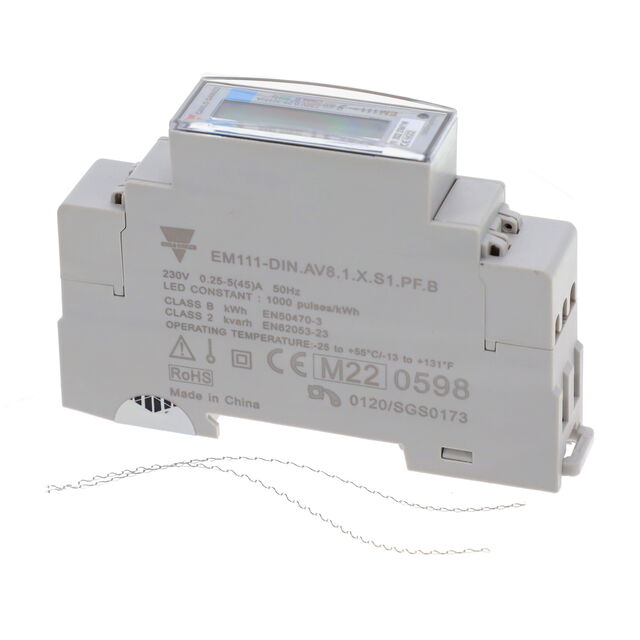

EM111DINAV81XS1PFB

Active

CARLO GAVAZZI

ENERGY METER 1-PH 230V RS485

Search across all available documentation for this part.

Active

CARLO GAVAZZI

ENERGY METER 1-PH 230V RS485

Technical Specifications

Parameters and characteristics for this part

Specification	EM111DINAV81XS1PFB

Display Characters - Height [z]	6 mm
Display Characters - Height [z]	0.236 in
Display Type	LCD - Black Characters, White Backlight
Ingress Protection	IP51 - Dust Protected
Measuring Range [Max]	32 A, 65 Hz, 230 VAC
Measuring Range [Min]	0 VAC, 5 A, 48 Hz
Measuring Type	Voltage, Current
Mounting Type	DIN Rail
Number of Characters Per Row	7
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Output Type	Analog
Termination Style	Screw Terminal
Type	Energy Monitor

Part	Measuring Type	Measuring Range [Min]	Measuring Range [Max]	Display Characters - Height [z]	Display Characters - Height [z]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Type	Display Type	Output Type	Mounting Type	Number of Characters Per Row
CARLO GAVAZZI EM111DINAV81XS1PFB	Current Voltage	0 VAC 5 A 48 Hz	32 A 65 Hz 230 VAC	6 mm	0.236 in	Screw Terminal	65 °C	-25 °C	IP51 - Dust Protected	Energy Monitor	LCD - Black Characters White Backlight	Analog	DIN Rail	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Energy Monitor LCD - Black Characters, White Backlight Display DIN Rail
