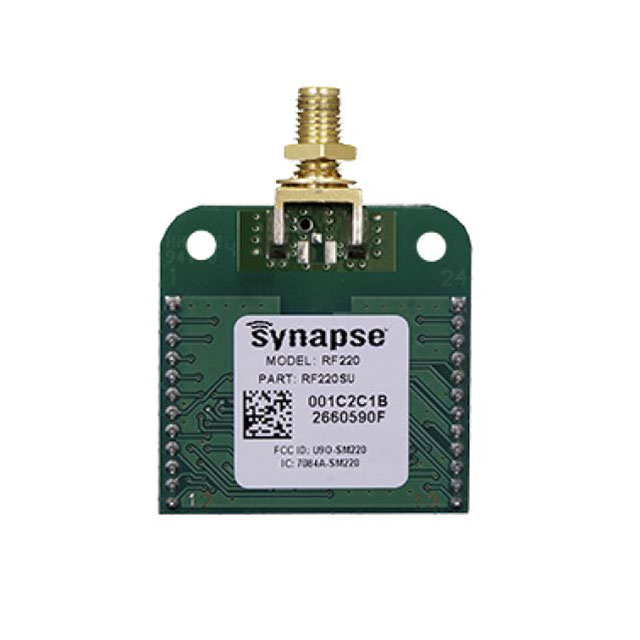

RF220SU

Active

Synapse Wireless

RF TXRX MOD 802.15.4U.FL TH

Search across all available documentation for this part.

Active

Synapse Wireless

RF TXRX MOD 802.15.4U.FL TH

Technical Specifications

Parameters and characteristics for this part

Part	Data Rate	Sensitivity	Mounting Type	Frequency	Serial Interfaces	Package / Case	RF Family/Standard	Antenna Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting [Min]	Current - Transmitting [Max]	Power - Output	Current - Receiving [Min]	Current - Receiving [Max]	Memory Size	Current - Receiving	Current - Transmitting
Synapse Wireless RF220SU-EU	2 Mbps	-103 dBm	Surface Mount	2.4 GHz	UART	Module	General ISM > 1GHz	Antenna Not Included RP-SMA U.FL	3.6 V	2 V	85 °C	-40 °C	55 mA	150 mA	20 dBm	7.8 mA	22 mA	4 kB 128 kB
Synapse Wireless RF220UF1	2 Mbps	-103 dBm	Through Hole	2.4 GHz	SPI UART	24-DIP Module	802.15.4	Chip Integrated U.FL	3.6 V	2 V	85 °C	-40 °C			20 dBm			58 kB 128 kB	22 mA	150 mA
Synapse Wireless RF220SU	2 Mbps	-103 dBm	Through Hole	2.4 GHz	I2C SPI UART	24-DIP Module	802.15.4	Antenna Not Included U.FL	3.6 V	2 V	85 °C	-40 °C			20 dBm			4 kB 128 kB	22 mA	150 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

802.15.4 Transceiver Module 2.4GHz Antenna Not Included, U.FL Through Hole
