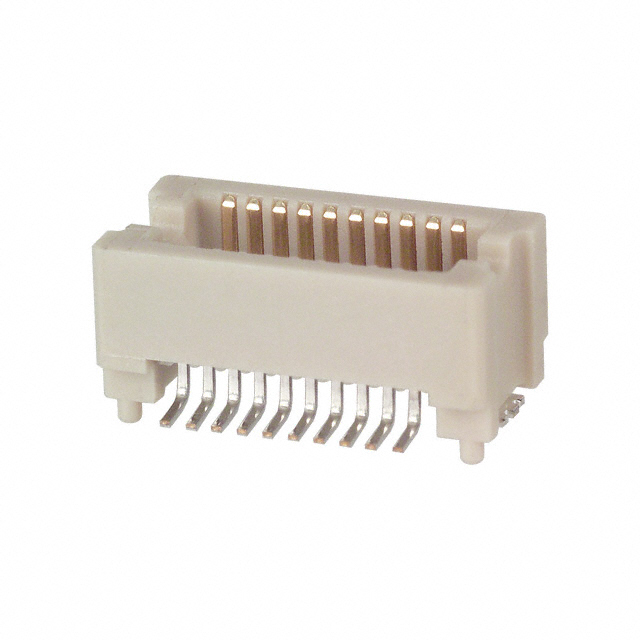

DF15(4.2)-20DP-0.65V(50)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF15(4.2)-20DP-0.65V(50)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	0.165 "
Height Above Board	4.2 mm
Mated Stacking Heights	5 mm, 6 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.026 in
Pitch [x]	0.65 mm

Part	Connector Type	Number of Positions	Contact Finish	Features	Mounting Type	Mated Stacking Heights	Number of Rows	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board
Hirose Electric USA, Inc. DF15(4.2)-20DP-0.65V(50)	Header Outer Shroud Contacts	20	Gold	Board Guide Solder Retention	Surface Mount	5 mm 6 mm	2	0.026 in	0.65 mm	0.165 "	4.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
