1045423-1

Unknown

TE Connectivity Aerospace, Defense and Marine

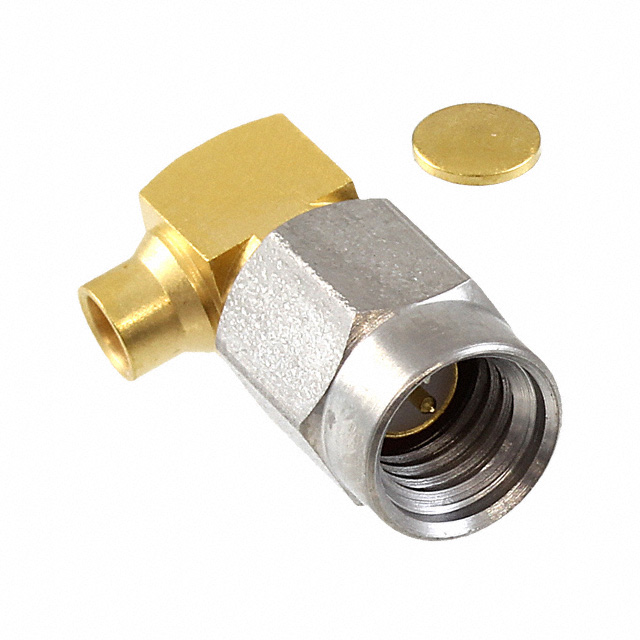

CONN SSMA PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Unknown

TE Connectivity Aerospace, Defense and Marine

CONN SSMA PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1045423-1

Body Finish	Gold; Passivated
Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	26 GHz
Housing Color	Gold, Silver
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Shield Termination	Connector Type	Body Material	Includes	Voltage Rating	Frequency - Max [Max]	Center Contact Material	Mounting Type	Cable Group	Housing Color	Dielectric Material	Impedance	Center Contact Plating	Body Finish	Contact Termination	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports
TE Connectivity Aerospace, Defense and Marine 1045423-1	Solder	Male Pin Plug	Stainless Steel	1 Connector 1 End Cap	250 VDC	26 GHz	Beryllium Copper	Free Hanging (In-Line) Right Angle	RG-405 (.085" Semi Rigid)	Gold Silver	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Gold; Passivated	Solder	SSMA	165 °C	-55 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
