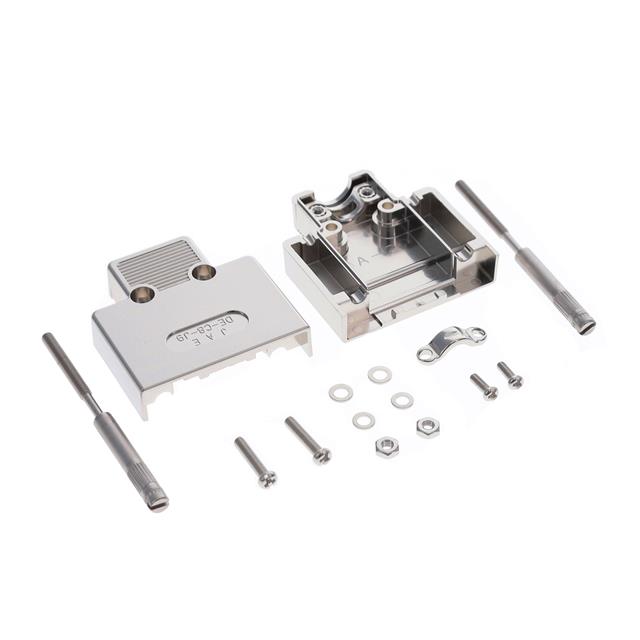

DE-C8-J9-F4-1R

Active

JAE Electronics

DSUB JUNCTION SHELL

Search across all available documentation for this part.

Active

JAE Electronics

DSUB JUNCTION SHELL

Technical Specifications

Parameters and characteristics for this part

Specification	DE-C8-J9-F4-1R

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Silver
Compatible D-Sub Size	HD15pos, 9pos
Compatible Shell Size	E
Features	Mating Screws M2.6
Material	Acrylonitrile Butadiene Styrene (ABS)
Number of Positions	9
Plating	Nickel
Primary Material	Plastic
Shielding	Unshielded

Part	Material	Plating	Cable Exit	Features	Shielding	Accessory Type	Color	Cable Type	Primary Material	Compatible Shell Size	Compatible D-Sub Size	Number of Positions
JAE Electronics DE-C8-J9-F2-1R	Aluminum Die Cast	Nickel	180 °	Mating Screws	Shielded	Two Piece Backshell	Silver	Round	Metal
JAE Electronics DE-C8-J9-F4-1R	Acrylonitrile Butadiene Styrene (ABS)	Nickel	180 °	Mating Screws M2.6	Unshielded	Two Piece Backshell	Silver	Round	Plastic	E	9pos HD15pos	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Two Piece Backshell Connector Silver 180° Unshielded
