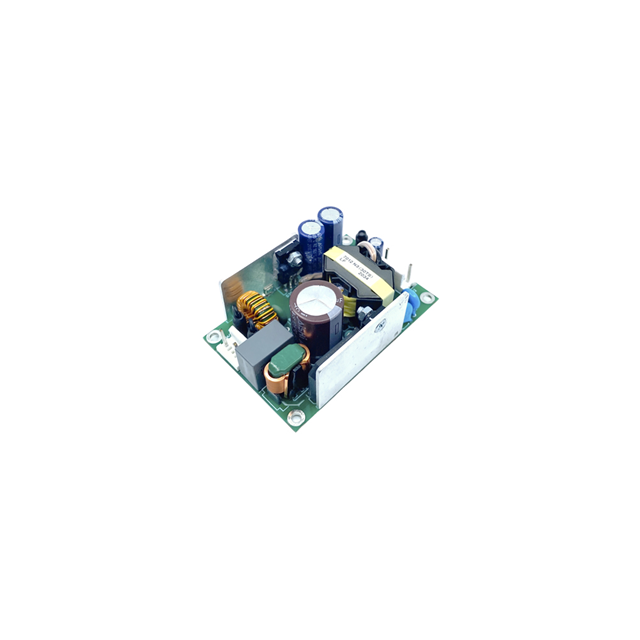

SLB65S24K
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 24V 65W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLB65S24K
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 24V 65W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLB65S24K |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 2.7 A |
| Efficiency | 89 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Size / Dimension [x] | 3 " |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 1.2 " |
| Size / Dimension [z] | 30.5 mm |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 30 | $ 29.80 | |
Description
General part information
SLB65S24 Series
Open Frame AC DC Converters 1 Output 24V 80 ~ 264 VAC Input
