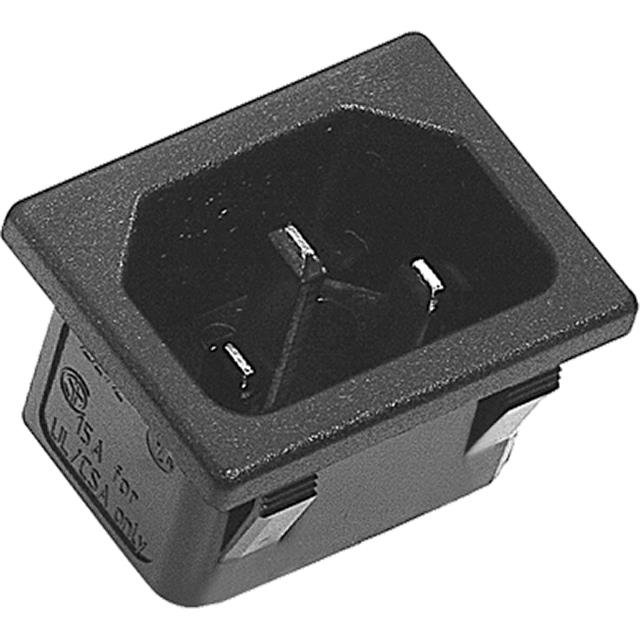

42R02-3212-150

Active

Power Dynamics, Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	42R02-3212-150

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	20 mm
Panel Cutout Dimensions [y]	27.5 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

Part	Connector Type	Material Flammability Rating	Termination	Termination	Termination	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Filter Type	Panel Thickness [custom]	Panel Thickness [custom]	Mounting Type
Power Dynamics, Inc. 42R02-1211	Receptacle Male Pins - Module	UL94 V-0	0.25 in	6.3 mm	Quick Connect	IEC 320-C16	20 mm	27.5 mm	CSA UL VDE
Power Dynamics, Inc. 42R02-4112	Receptacle Male Pins - Module	UL94 V-0	0.187 "	4.7 mm	Quick Connect	IEC 320-C14	20 mm	27.5 mm	CSA UL VDE
Power Dynamics, Inc. 42R02-4122	Receptacle Male Pins - Module	UL94 V-0	0.187 "	4.7 mm	Quick Connect	IEC 320-C14	20 mm	27.5 mm	CSA UL VDE
Power Dynamics, Inc. 42R02-3212-150	Male Blades Receptacle	UL94 V-0	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	27.5 mm	20 mm	CSA UL VDE	Unfiltered - Commercial	0.059 in	1.5 mm	Panel Mount Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
