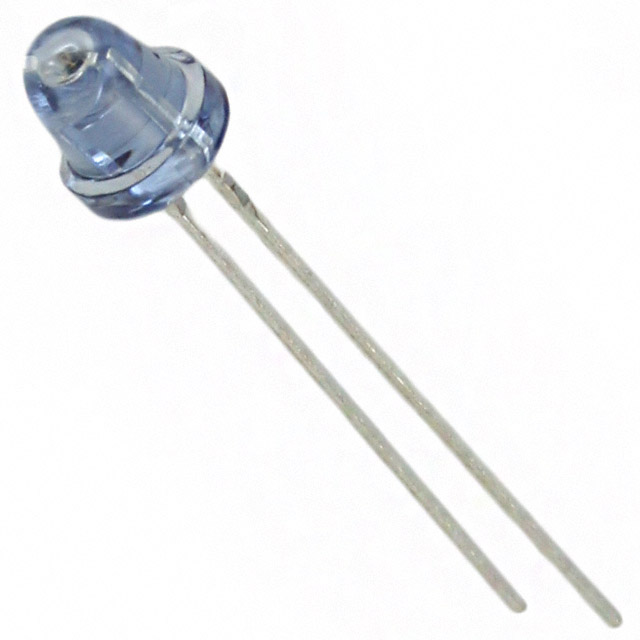

IR323/H0-A

Active

Everlight Electronics Co Ltd

INFRARED LED, 5MM, 1-ELEMENT, 940NM, ROHS COMPLIANT, PLASTIC PACKAGE-2

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

INFRARED LED, 5MM, 1-ELEMENT, 940NM, ROHS COMPLIANT, PLASTIC PACKAGE-2

Technical Specifications

Parameters and characteristics for this part

Specification	IR323/H0-A

Current - DC Forward (If) (Max) [Max]	100 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-25 °C
Orientation	Top View
Package / Case	Radial
Radiant Intensity (Ie) Min @ If [Min]	2 mW/sr
Type	Infrared (IR)
Viewing Angle	60 °
Wavelength	940 nm

Part	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Mounting Type	Orientation	Current - DC Forward (If) (Max) [Max]	Package / Case	Radiant Intensity (Ie) Min @ If [Min]	Viewing Angle	Type
Everlight Electronics Co Ltd IR323/H0-A	85 C	-25 °C	940 nm	Through Hole	Top View	100 mA	Radial	2 mW/sr	60 °	Infrared (IR)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1500	$ 0.14

General part information

Infrared (IR) Emitter 940nm 1.2V 100mA 2mW/sr @ 20mA 60° Radial

Technical documentation and resources

No documents available
