S-881300BPE-IOQTFG

Obsolete

ABLIC Inc.

IC LED DRIVER RGLTR 23MA 10SON

Search across all available documentation for this part.

Obsolete

ABLIC Inc.

IC LED DRIVER RGLTR 23MA 10SON

Technical Specifications

Parameters and characteristics for this part

Specification	S-881300BPE-IOQTFG

Applications	Backlight
Current - Output / Channel	23 mA
Frequency	600 kHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Number of Outputs	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

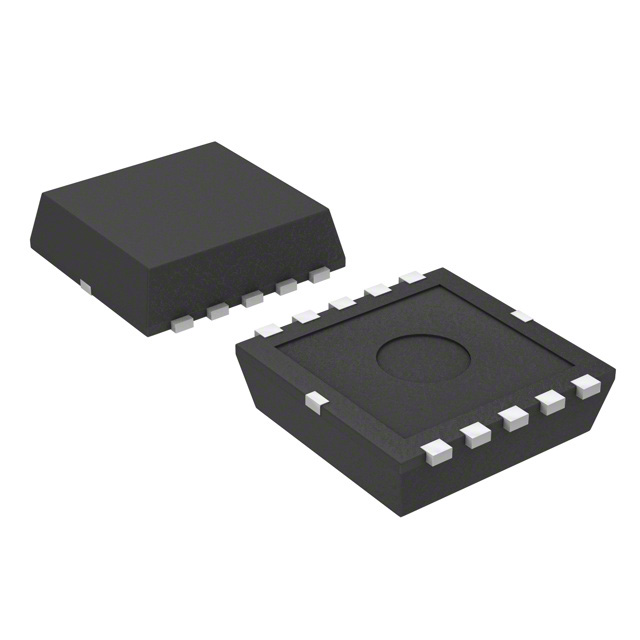

Package / Case	10-SMD, Flat Leads
Supplier Device Package	10-SON (2.9x2.8)
Topology	Switched Capacitor (Charge Pump)
Type	DC DC Regulator
Voltage - Supply (Max) [Max]	4.5 V

Part	Voltage - Supply (Max) [Max]	Package / Case	Frequency	Current - Output / Channel	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Supplier Device Package	Applications	Number of Outputs	Internal Switch(s)
ABLIC Inc. S-881300BPE-IOQTFG	4.5 V	10-SMD Flat Leads	600 kHz	23 mA	Switched Capacitor (Charge Pump)	85 °C	-40 °C	Surface Mount	DC DC Regulator	10-SON (2.9x2.8)	Backlight	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Driver IC 3 Output DC DC Regulator Switched Capacitor (Charge Pump) Dimming 23mA 10-SON (2.9x2.8)
