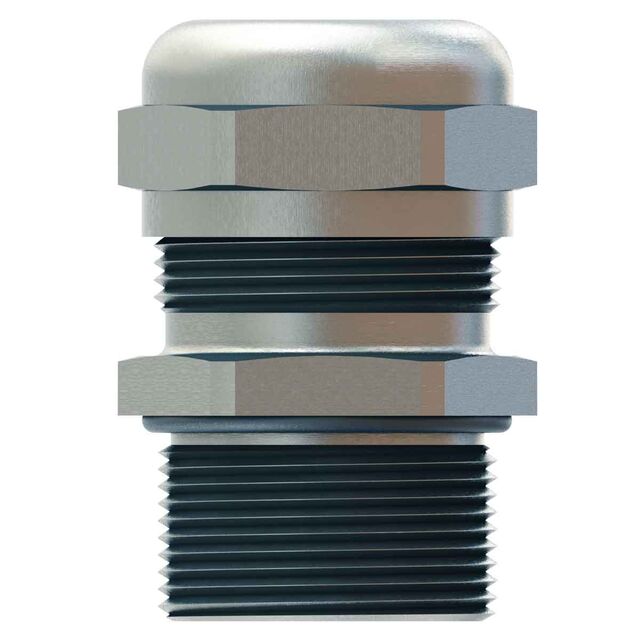

MMS-20L

Active

SAB North America

CABLE GLAND 6-12MM M20 BRASS

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 6-12MM M20 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	MMS-20L

Color	Silver
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Panel Hole Size	0.787 in
Panel Hole Size	20 mm
Thread Length	0.472 in
Thread Length	12 mm
Thread Size	M20x1.5
Type	Cable Gland

Part	Color	Type	Thread Size	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Panel Hole Size	Panel Hole Size
SAB North America MMS-20L	Silver	Cable Gland	M20x1.5	IP68 - Dust Tight Waterproof	0.472 in	12 mm	100 °C	-20 C	Brass Nickel Plated	6 mm	0.236 in	0.472 in	12 mm	0.787 in	20 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M20x1.5 Silver
