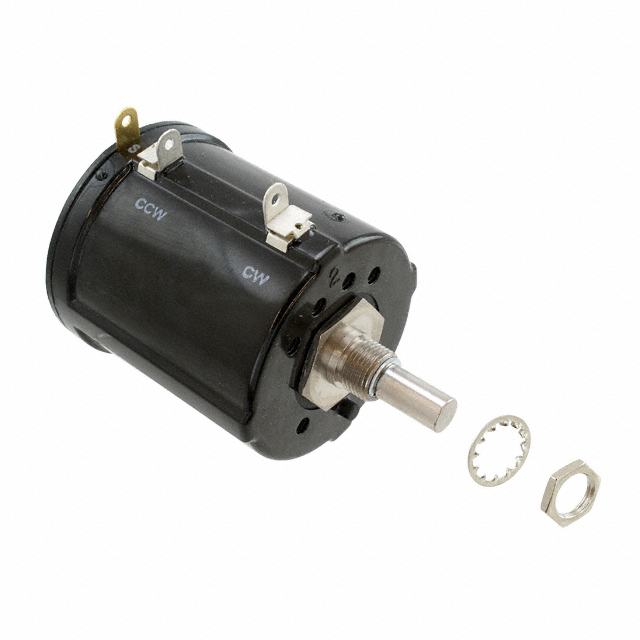

AR300KL.25
ActiveTT Electronics/BI
POT 300K OHM 5W WIREWOUND LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AR300KL.25
ActiveTT Electronics/BI
POT 300K OHM 5W WIREWOUND LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AR300KL.25 |
|---|---|
| Actuator Diameter [diameter] | 6.34 mm |
| Actuator Diameter [diameter] | 0.2497 in |
| Actuator Length [x] | 20.6 mm |
| Actuator Length [x] | 0.811 in |
| Actuator Type | Round |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Number of Gangs | 1 |
| Number of Turns | 10 |
| Power (Watts) | 5 W |
| Resistance (Ohms) | 300k |
| Resistive Material | Wirewound |
| Rotation | 3600 ° |
| Size - Body [diameter] | 1.812 in |
| Size - Body [diameter] | 46.03 mm |
| Taper | Linear |
| Temperature Coefficient | 20 ppm/°C |
| Termination Style | Solder Lug |
| Tolerance | 3 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 197.28 | |
| 10 | $ 157.36 | |||
| 25 | $ 143.62 | |||
| 50 | $ 133.95 | |||
Description
General part information
AR300 Series
300k Ohm 1 Gang Linear Panel Mount Potentiometer 10.0 Turns Wirewound 5W Solder Lug
