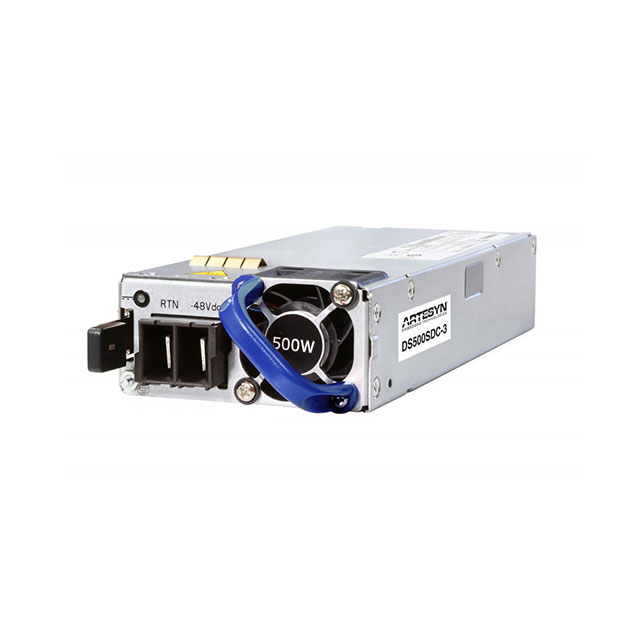

DS500SDC-3

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 12V 12V 500W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 12V 12V 500W

Technical Specifications

Parameters and characteristics for this part

Specification	DS500SDC-3

Applications	ITE (Commercial)
Approval Agency	UL, CCC, DEMKO, CB, cUL, CE
Current - Output 1	41.67 A
Current - Output 2	3 A
Efficiency	90 %
Features	Remote Sense, Standby Output, Load Sharing, Remote On/Off, I2C Interface, DC Input Capable
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	2
Power (Watts)	500 W
Size / Dimension [x]	7.74 in
Size / Dimension [x]	196.5 mm
Size / Dimension [y]	3.4 in
Size / Dimension [y]	86.3 mm
Size / Dimension [z]	1.58 "
Size / Dimension [z]	40.2 mm
Type	Front End
Voltage - Output 1	12 V
Voltage - Output 2	12 V

Part	Features	Minimum Load Required	Efficiency	Current - Output 1	Voltage - Output 2	Type	Mounting Type	Approval Agency	Number of Outputs	Current - Output 2	Voltage - Output 1	Applications	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
ARTESYN / Advanced Energy DS500SDC-3	DC Input Capable I2C Interface Load Sharing Remote On/Off Remote Sense Standby Output		90 %	41.67 A	12 V	Front End	Rack Mount	CB CCC CE cUL DEMKO UL	2	3 A	12 V	ITE (Commercial)	500 W	1.58 "	7.74 in	3.4 in	196.5 mm	40.2 mm	86.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	90	$ 274.53

General part information

Front End AC DC Converters 2 Output 12V 12V Input
