A-20042-LPS

Active

Assmann WSW Components

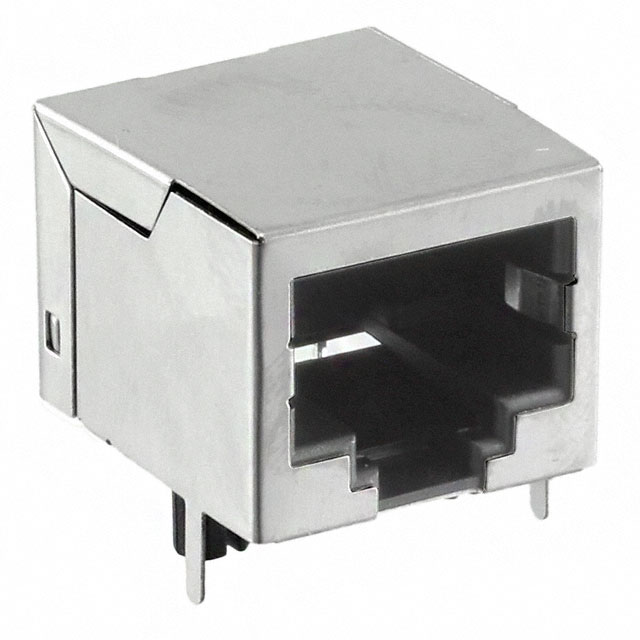

CONN MOD JACK 10P8C R/A SHLD

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN MOD JACK 10P8C R/A SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	A-20042-LPS

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.152 Ám
Contact Finish Thickness	6 Áin
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts [custom]	8
Number of Positions/Contacts [custom]	10
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Ports	Contact Material	Connector Type	Contact Finish	Orientation	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Shielding	LED Color	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Mounting Type	Tab Direction
Assmann WSW Components A-20042-LPS	0.152 Ám	6 Áin	1	1	Phosphor Bronze	Jack	Gold	90 °	8	10	Shielded	Does Not Contain LED	Solder	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	Through Hole	Down

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 10p8c 90° Angle (Right) Shielded
