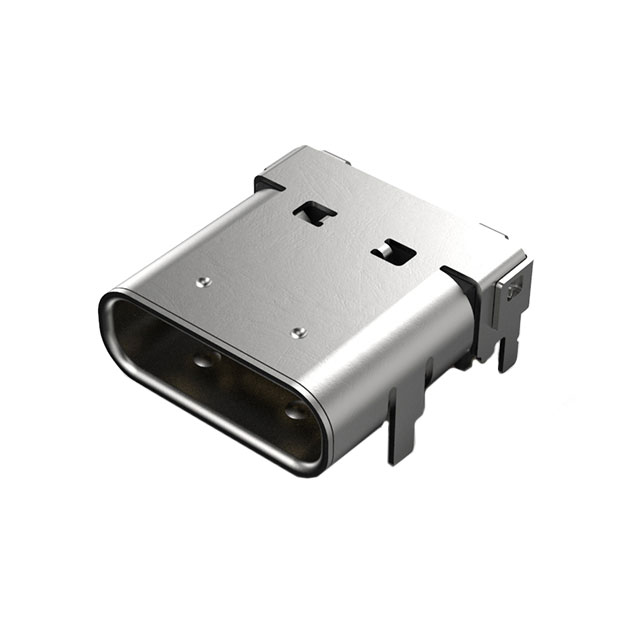

USB4055-30-A

Obsolete

GCT

USB TYPE C REC, 30", HORIZONTAL,

Search across all available documentation for this part.

Obsolete

GCT

USB TYPE C REC, 30", HORIZONTAL,

Technical Specifications

Parameters and characteristics for this part

Specification	USB4055-30-A

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	5 A
Features	Board Guide, Solder Retention Tab
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
Voltage - Rated	20 V

Part	Termination	Insulation Color	Specifications	Number of Contacts	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Shell/Shielding Material	Features	Number of Ports	Material Flammability Rating	Contact Finish	Gender	Mating Cycles	Current Rating (Amps)	Mounting Feature	Shielding	Mounting Type	Connector Type
GCT USB4055-30-A	Solder	Black	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	24	85 °C	-40 °C	20 V	Stainless Steel	Board Guide Solder Retention Tab	1	UL94 V-0	Gold	Receptacle	10000	5 A	Horizontal	Shielded	Surface Mount Right Angle Through Hole	USB-C (USB TYPE-C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
