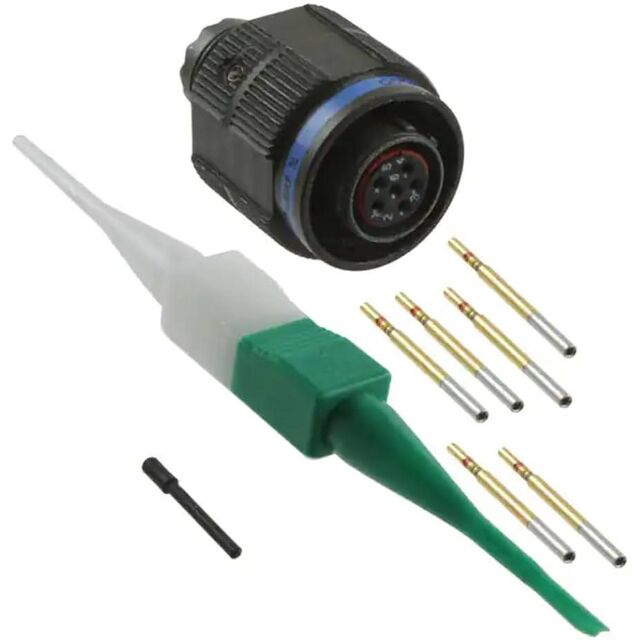

MS27467E15B18PA

Active

Corsair

PLUG STRAIGHT CABLE

Search across all available documentation for this part.

Active

Corsair

PLUG STRAIGHT CABLE

Technical Specifications

Parameters and characteristics for this part

Specification	MS27467E15B18PA

Applications	Military, Aerospace
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Size - Insert [Max]	18
Shell Size - Insert [Min]	15
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp

Part	Color	Shielding	Voltage Rating	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Mounting Type	Primary Material	Termination	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Features	Applications	Connector Type	Number of Positions	Contact Finish - Mating	Ingress Protection	Fastening Type	Shell Material	Qualification	Grade	Insert Material	Shell Size, MIL
Corsair MS27467E15B35P	Olive Drab	Shielded	500 VAC	N	-65 ░C	347 °F	UL94 V-0	Free Hanging (In-Line)	Metal	Crimp	15	35	Coupling Nut	Aerospace Aviation Military	Male Pins Plug	37	Gold	Environment Resistant	Bayonet Lock	Aluminum
Corsair MS27467E15B18PA	Olive Drab	Shielded		A	-65 ░C	200 °C	UL94 V-0	Free Hanging (In-Line)	Metal	Crimp	15	18	Coupling Nut	Aerospace Military	Male Pins Plug	18	Gold	IP67	Bayonet Lock		MIL-DTL-38999 Series I	Military	Thermoplastic	C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 215.07

General part information

18 Position Circular Connector Plug, Male Pins Crimp
