XDUR09A3

Active

SunLED

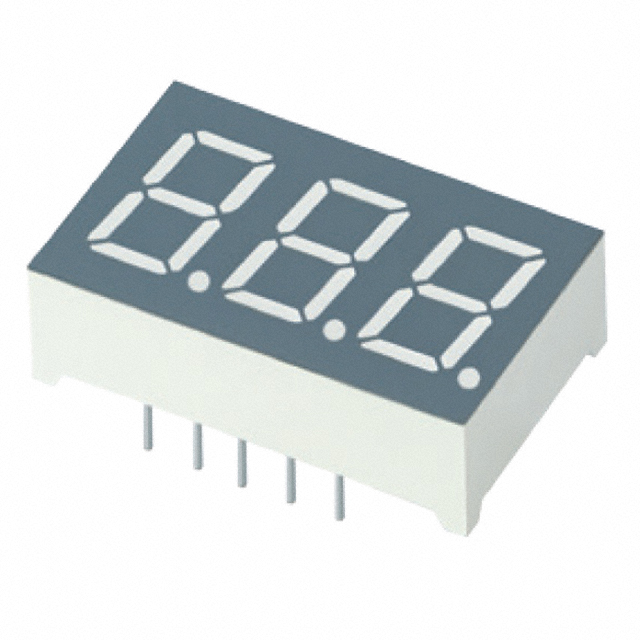

DISPLAY 7SEG 0.36" TRP RED 12DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDUR09A3

Active

SunLED

DISPLAY 7SEG 0.36" TRP RED 12DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDUR09A3

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.36 in
Digit/Alpha Size	9.14 mm
Display Type	7-Segment
Millicandela Rating	1 mcd
Number of Characters	3
Package / Case	10.16 mm
Package / Case	12-DIP, 11 Leads
Package / Case	10.16 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.283 in
Size / Dimension [x]	7.2 mm
Size / Dimension [y]	22.5 mm
Size / Dimension [y]	0.886 "
Size / Dimension [z]	0.551 "
Size / Dimension [z]	14 mm
Voltage - Forward (Vf) (Typ)	1.9 V
Wavelength - Peak	627 nm

XDUR09 Series

Part	Package / Case	Package / Case	Package / Case	Millicandela Rating	Number of Characters	Common Pin	Display Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Color	Power Dissipation (Max) [Max]	Current - Test	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size
SunLED XDUR09A3	10.16 mm	11 Leads 12-DIP	10.16 mm	1 mcd	3	Common Anode	7-Segment	0.551 "	22.5 mm	0.886 "	0.283 in	14 mm	7.2 mm	1.9 V	Red	75 mw	10 mA	627 nm	0.36 in	9.14 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2002	$ 1.87

Description

General part information

XDUR09 Series

Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Anode 1.9V 10mA 0.551" H x 0.886" W x 0.283" D (14.00mm x 22.50mm x 7.20mm) 12-DIP (0.400", 10.16mm), 11 Leads
