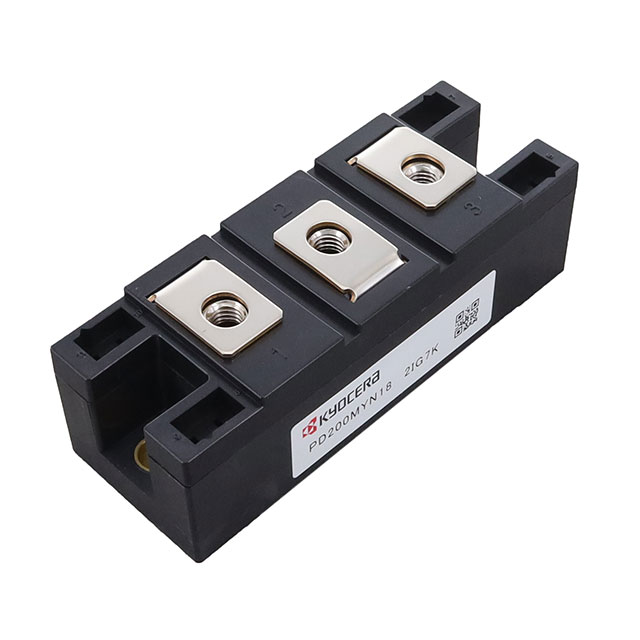

PD200MYN18

Active

Kyocera AVX

DIODE MODULE GP 1800V 200A

Search across all available documentation for this part.

Active

Kyocera AVX

DIODE MODULE GP 1800V 200A

Technical Specifications

Parameters and characteristics for this part

Specification	PD200MYN18

Current - Average Rectified (Io) (per Diode)	200 A
Current - Reverse Leakage @ Vr	10 mA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1800 V
Voltage - Forward (Vf) (Max) @ If	1.5 V

Part	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Technology	Current - Average Rectified (Io) (per Diode)	Speed	Speed	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Diode Configuration
Kyocera AVX PD200KN8	Chassis Mount	800 V	17 mA	1.4 V	Module	Standard	200 A	Standard Recovery >500ns	200 mA	Module	150 °C	-40 °C	1 Pair Series Connection
Kyocera AVX PD200MYN18	Chassis Mount	1800 V	10 mA	1.5 V	Module	Standard	200 A	Standard Recovery >500ns	200 mA	Module	150 °C	-40 °C	1 Pair Series Connection

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 105.00

General part information

Diode Array 1 Pair Series Connection 1800 V 200A Chassis Mount Module
