C0912A.41.10

Active

Prysmian Group

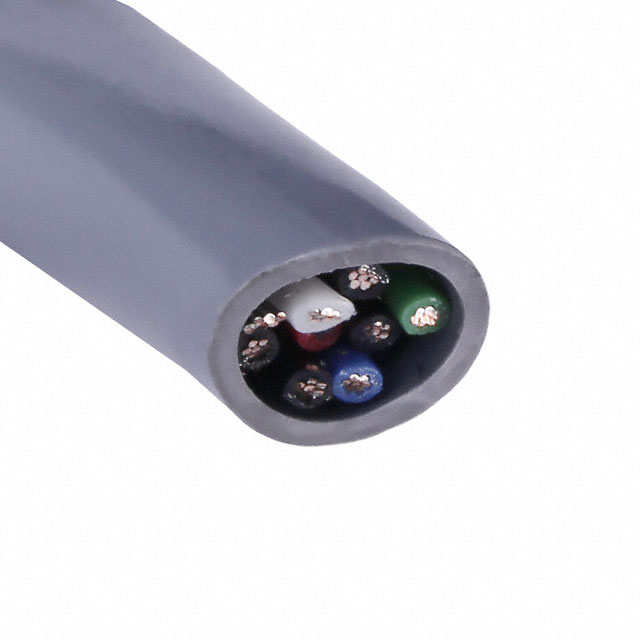

MULTI-PAIR 8COND 24AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

MULTI-PAIR 8COND 24AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C0912A.41.10

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Low Capacitance
Jacket (Insulation) Diameter [diameter]	10.57 mm
Jacket (Insulation) Diameter [diameter]	0.416 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	500 ', 50 ft
Length [x]	152.4 m
Number of Conductors	8
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Voltage	Conductor Material	Usage	Length [x]	Length [x]	Cable Type	Number of Conductors	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Material	Shield Coverage	Length	Length	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Ratings
Prysmian Group C0912A.41.10	Polypropylene (PP)	32 AWG	7	Flexfoil®	300 V	Copper Annealed Tinned	Computer	50 ft 500 '	152.4 m	Multi-Pair	8	Foil	10.57 mm	0.416 "	24 AWG	Poly-Vinyl Chloride (PVC)	100 %	1000 ft	15.24 m 304.8 m	Low Capacitance	0.048 in	1.219 mm	Gray	ASTM B-33

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil 1000.0' (304.8m)
