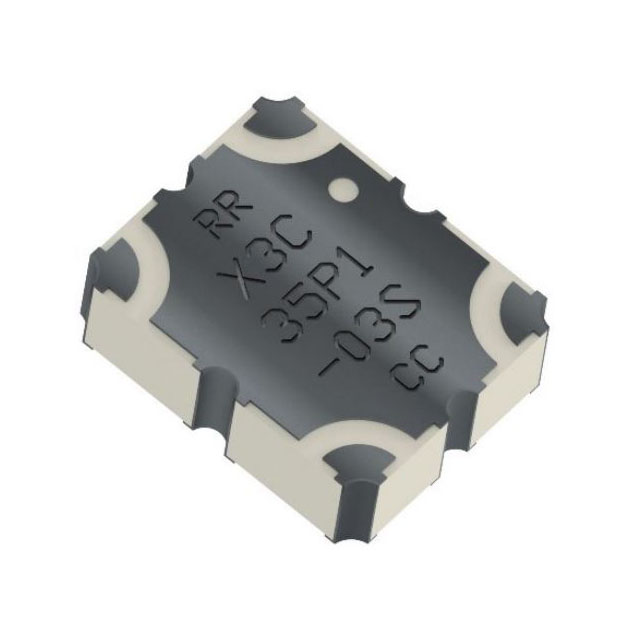

X3C35P1-03S
ActiveTTM Technologies, Inc.
IC HYBRID COUPLER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X3C35P1-03S
ActiveTTM Technologies, Inc.
IC HYBRID COUPLER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X3C35P1-03S |
|---|---|
| Applications | DCS, WCDMA, LTE, PCS |
| Coupler Type | Standard |
| Frequency [Max] | 4.2 GHz |
| Frequency [Min] | 3.1 GHz |
| Insertion Loss | 0.25 dB |
| Isolation | 23 dB |
| Package / Case | 5-SMD, No Lead |
| Power - Max [Max] | 85 W |
| Supplier Device Package | 5-SMD |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.32 | |
| 10 | $ 4.75 | |||
| 25 | $ 4.27 | |||
| 100 | $ 3.89 | |||
| 250 | $ 3.51 | |||
| 500 | $ 3.15 | |||
| 1000 | $ 2.66 | |||
| Digi-Reel® | 1 | $ 5.32 | ||
| 10 | $ 4.75 | |||
| 25 | $ 4.27 | |||
| 100 | $ 3.89 | |||
| 250 | $ 3.51 | |||
| 500 | $ 3.15 | |||
| 1000 | $ 2.66 | |||
| Tape & Reel (TR) | 2000 | $ 2.35 | ||
Description
General part information
X3C35 Series
RF Directional Coupler DCS, LTE, PCS, WCDMA 3.1GHz ~ 4.2GHz 85W 5-SMD, No Lead
