8810-10-22.86(25)

Active

3M (TC)

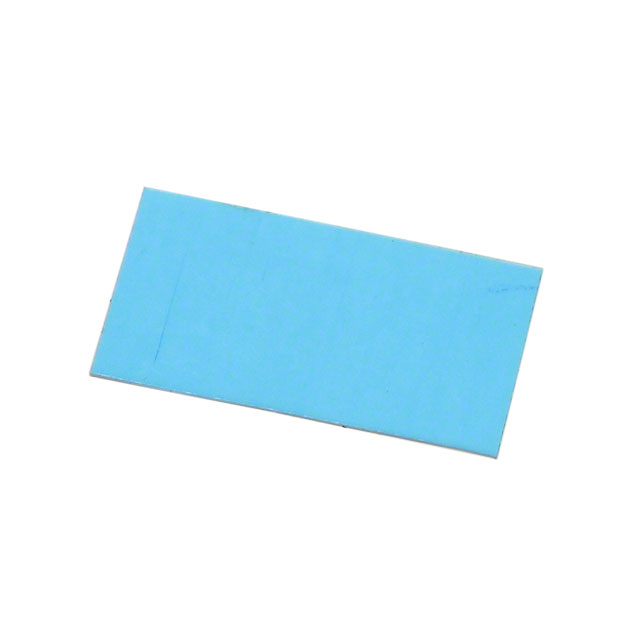

THERM PAD 22.86MMX10MM 1=25/PK

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 22.86MMX10MM 1=25/PK

Technical Specifications

Parameters and characteristics for this part

Specification	8810-10-22.86(25)

Adhesive	Adhesive - Both Sides
Backing, Carrier	Polyester
Color	White
Material	Acrylic
Outline [x]	22.86 mm
Outline [y]	10 mm
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	72 °F
Storage/Refrigeration Temperature	22 °C
Thermal Conductivity	0.6 W/m-K
Type	Transfer Tape

Part	Shelf Life	Adhesive	Shape	Material	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Thermal Resistivity	Outline [y]	Outline [x]	Type	Color	Shelf Life Start	Thickness	Thickness	Backing, Carrier	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Thermal Conductivity
3M (TC) 10MM-22.86MM-25-5590H-05	24 Months	Tacky - Both Sides	Rectangular	Acrylic Elastomer	77 °F	68 °F	0.46 °C/W	10 mm	22.86 mm	Interface Pad Sheet	Gray	Date of Manufacture	0.0197 in	0.5 mm
3M (TC) 10MM-22.86MM-25-8815	24 Months	Adhesive - Both Sides	Rectangular	Acrylic				10 mm	22.86 mm	Transfer Tape	White	Date of Manufacture	0.0148 in	0.375 mm	Polyester	72 °F	22 °C	0.6 W/m-K
3M (TC) 8810-10-22.86(25)	24 Months	Adhesive - Both Sides	Rectangular	Acrylic				10 mm	22.86 mm	Transfer Tape	White	Date of Manufacture			Polyester	72 °F	22 °C	0.6 W/m-K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.77

General part information

Thermal Pad White 22.86mm x 10.00mm Rectangular Adhesive - Both Sides
