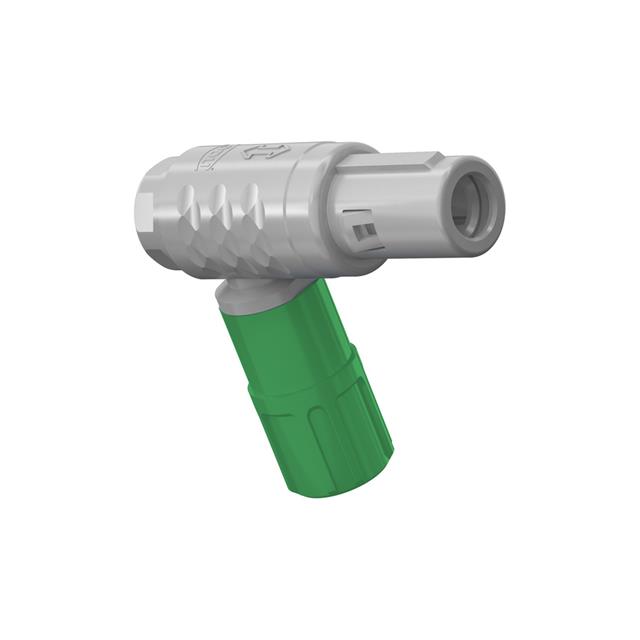

W11MC7-P10MCC0-6550

Active

ODU

ODU MEDI-SNAP R/A PLUG, STY 1, S

Search across all available documentation for this part.

Active

ODU

ODU MEDI-SNAP R/A PLUG, STY 1, S

Technical Specifications

Parameters and characteristics for this part

Specification	W11MC7-P10MCC0-6550

Applications	Testing Equipment, Medical, Industrial, Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [custom]	0.209 in, 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm
Color	Green, Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	10
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	C
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded
Voltage Rating	25 V

Part	Contact Finish - Mating	Backshell Material, Plating	Ingress Protection	Orientation	Fastening Type	Shell Material	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Mounting Type	Contact Material	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Number of Positions	Insert Material	Primary Material	Shielding	Color	Shell Size - Insert	Features	Current Rating (Amps)
ODU W11MC7-P04MJG0-6570	Gold	Polysulfone (PSU)	IP50	C	Push-Pull	Polysulfone (PSU)	Industrial Measurement Medical Testing Equipment	-50 °C	120 °C	UL94 V-0	Free Hanging (In-Line) Right Angle	Brass	48 VDC	0.209 in 0.256 in	5.3 mm 6.5 mm	Male Pins Plug	4	Polyetheretherketone (PEEK)	Plastic	Unshielded	Gray	1	Backshell	7.5 A
ODU W11MC7-P10MCC0-6570	Gold	Polysulfone (PSU)	IP50	C	Push-Pull	Polysulfone (PSU)	Industrial Measurement Medical Testing Equipment	-50 °C	120 °C	UL94 V-0	Free Hanging (In-Line) Right Angle	Brass	25 V	0.209 in 0.256 in	5.3 mm 6.5 mm	Male Pins Plug	10	Polyetheretherketone (PEEK)	Plastic	Unshielded	Gray	1	Backshell	4 A
ODU W11MC7-P10MCC0-6550	Gold	Polysulfone (PSU)	IP50	C	Push-Pull	Polysulfone (PSU)	Industrial Measurement Medical Testing Equipment	-50 °C	120 °C	UL94 V-0	Free Hanging (In-Line) Right Angle	Brass	25 V	0.209 in 0.256 in	5.3 mm 6.5 mm	Male Pins Plug	10	Polyetheretherketone (PEEK)	Plastic	Unshielded	Gray Green	1	Backshell	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.89

General part information

10 Position Circular Connector Plug, Male Pins Solder Cup
