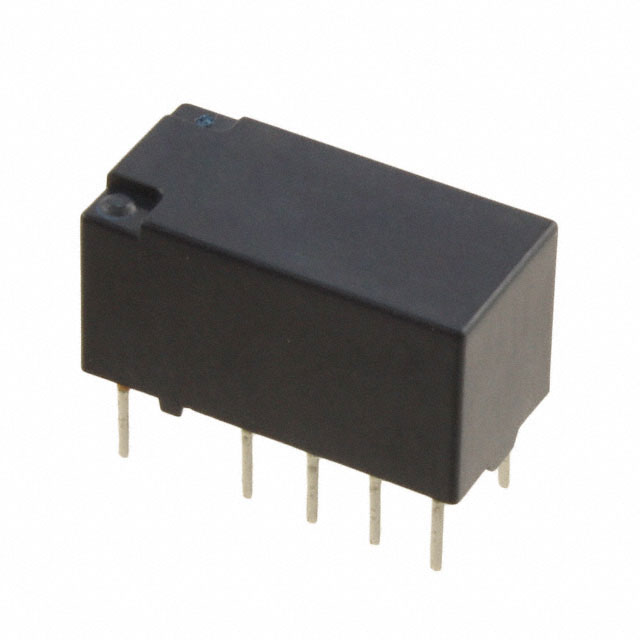

TX2-1.5V-TH
ActivePanasonic Electric Works
RELAY GEN PURPOSE DPDT 2A 1.5V
Deep-Dive with AI
Search across all available documentation for this part.
TX2-1.5V-TH
ActivePanasonic Electric Works
RELAY GEN PURPOSE DPDT 2A 1.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TX2-1.5V-TH |
|---|---|
| Approval Agency | BSI, cURus |
| Coil Current | 93.8 mA |
| Coil Resistance | 16 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 1.5 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 440 W, 500 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 1.13 VDC |
| Must Release Voltage | 0.15 VDC |
| Operate Time | 4 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.59 | |
| 10 | $ 2.43 | |||
| 40 | $ 2.05 | |||
| 80 | $ 1.94 | |||
| 280 | $ 1.90 | |||
Description
General part information
TX2-1.5 Series
General Purpose Relay DPDT (2 Form C) Through Hole
