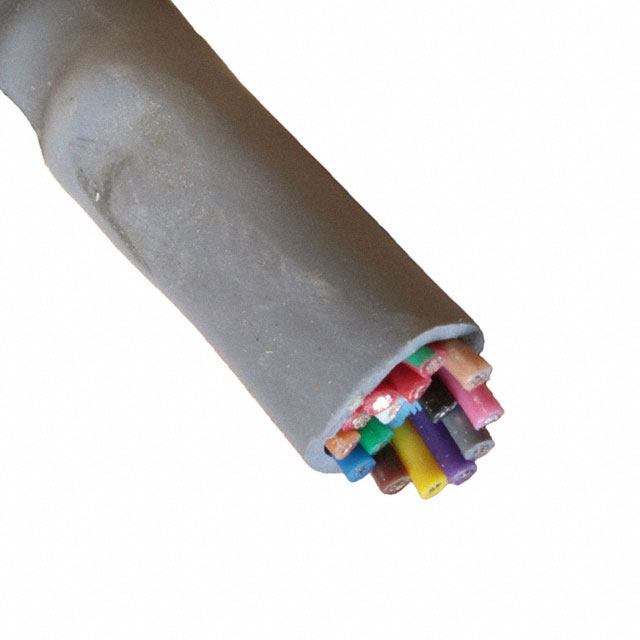

M33315 SL199

Active

ALPHA WIRE

CABLE 15COND 22AWG SLATE 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 15COND 22AWG SLATE 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M33315 SL199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	7.54 mm
Jacket (Insulation) Diameter [diameter]	0.297 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	15
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Voltage	300 V
Wire Gauge	22 AWG

Part	Ratings	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Number of Conductors	Cable Type	Wire Gauge	Length	Length	Jacket (Insulation) Material
ALPHA WIRE M33315 SL199	UL Style 2576	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Slate	300 V	7.54 mm	0.297 "	28	7	Copper Tinned	15	Multi-Conductor	22 AWG	914.4 m	3000 ft	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.32

General part information

15 Conductor Multi-Conductor Cable Slate 22 AWG 3000' (914.4m)
