6ES72121BE400XB0
ActiveCPU 1212C, AC/DC/RELAY, 8DI/6DO/
Deep-Dive with AI
Search across all available documentation for this part.
6ES72121BE400XB0
ActiveCPU 1212C, AC/DC/RELAY, 8DI/6DO/
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6ES72121BE400XB0 |
|---|---|
| Approval Agency | UL, KC, cULus, RCM, FM, CE |
| Display Type | No Display |
| Expandable | False |
| Memory Size | 75 KB |
| Number of Inputs and Type [custom] | 8 |
| Number of Inputs and Type [custom] | Digital |
| Number of Outputs and Type [custom] | 6 |
| Number of Outputs and Type [custom] | Relay |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Voltage - Supply [Max] | 264 VAC |
| Voltage - Supply [Min] | 85 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 404.71 | |
| 10 | $ 391.22 | |||
| 25 | $ 364.24 | |||
Description
General part information
6ES72121 Series

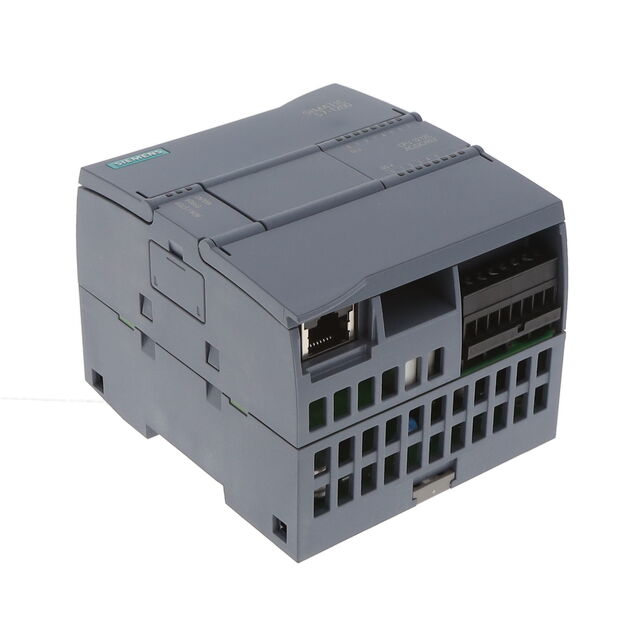

The Siemens Simatic 6ES7212-1BE40-0XB0 is a programmable logic controller (PLC) designed for industrial automation and control applications. With an IP20 ingress protection rating, it operates reliably in temperatures ranging from -20°C to 60°C. It features 8 digital inputs and 6 relay outputs, and is powered by a 85-264V AC supply. The PLC supports programming in LAD, FBD, and SCL languages, compliant with IEC 61131 standards. It includes a real-time clock, 75KB of memory, and various certifications such as CE, cULus, FM, KC, and UL.
