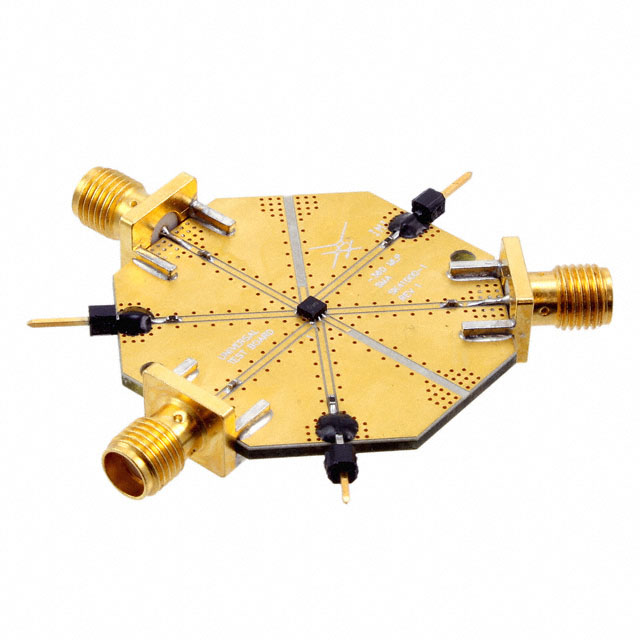

SKY13298-360LF-EVB

Active

Skyworks Solutions Inc.

BOARD EVAL SPDT SW SKY13298-360

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

BOARD EVAL SPDT SW SKY13298-360

Technical Specifications

Parameters and characteristics for this part

Specification	SKY13298-360LF-EVB

For Use With/Related Products	SKY13298-360LF
Frequency [Max]	8 GHz
Frequency [Min]	3 GHz
Supplied Contents	Board(s)
Type	Switch

Part	Operating Temperature [Max]	Operating Temperature [Min]	Test Frequency	Isolation	IIP3	Circuit	Impedance	Supplier Device Package	P1dB	Mounting Type	Topology	Insertion Loss	Package / Case	RF Type	Supplied Contents	For Use With/Related Products	Frequency [Min]	Frequency [Max]	Type
Skyworks Solutions Inc. SKY13298-360LF	85 °C	-40 °C	7.92 GHz	22 dB	42 dBm	SPDT	50 Ohms	8-QFN (2x2)	24 dBm	Surface Mount	Reflective	0.9 dB	8-VFDFN Exposed Pad	UWB
Skyworks Solutions Inc. SKY13298-360LF-EVB															Board(s)	SKY13298-360LF	3 GHz	8 GHz	Switch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.24

General part information

- SKY13298-360LF Switch 3GHz ~ 8GHz Evaluation Board

Technical documentation and resources

No documents available
