ACSA03-41SRWA-F01

Active

Kingbright

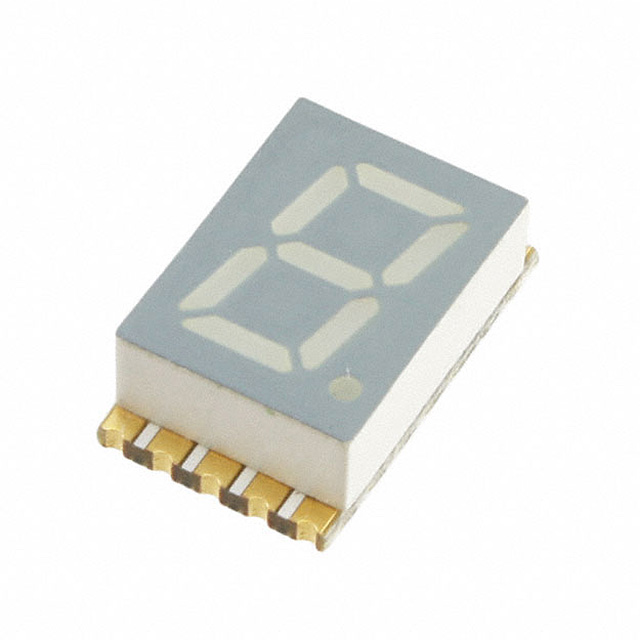

DISPLAY 7-SEG 0.3" SGL RED 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACSA03-41SRWA-F01

Active

Kingbright

DISPLAY 7-SEG 0.3" SGL RED 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACSA03-41SRWA-F01

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.3 in
Digit/Alpha Size	7.62 mm
Display Type	7-Segment
Millicandela Rating	9.8 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	3.75 mm
Size / Dimension [x]	0.148 "
Size / Dimension [y]	0.287 in
Size / Dimension [y]	7.3 mm
Size / Dimension [z]	10 mm
Size / Dimension [z]	0.394 in
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	660 nm

ACSA03 Series

Part	Current - Test	Number of Characters [custom]	Package / Case	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Power Dissipation (Max) [Max]	Display Type	Wavelength - Peak	Common Pin	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Color
Kingbright ACSA03-41SURKWA-F01	20 mA	1	10-SMD No Lead	1.95 V	0.3 in	7.62 mm	27 mcd	75 mw	7-Segment	650 nm	Common Anode	10 mm	0.394 in	0.287 in	3.75 mm	7.3 mm	0.148 "	Red
Kingbright ACSA03-41EWA-F01	20 mA	1	10-SMD No Lead	2 V	0.3 in	7.62 mm	4.21 mcd	75 mw	7-Segment	627 nm	Common Anode	10 mm	0.394 in	0.287 in	3.75 mm	7.3 mm	0.148 "	Red
Kingbright ACSA03-41SRWA-F01	20 mA	1	10-SMD No Lead	1.85 V	0.3 in	7.62 mm	9.8 mcd	75 mw	7-Segment	660 nm	Common Anode	10 mm	0.394 in	0.287 in	3.75 mm	7.3 mm	0.148 "	Red
Kingbright ACSA03-41CGKWA-F01	20 mA	1	10-SMD No Lead	2.1 V	0.3 in	7.62 mm	12 mcd	75 mw	7-Segment		Common Anode	10 mm	0.394 in	0.287 in	3.75 mm	7.3 mm	0.148 "	Green
Kingbright ACSA03-41SGWA-F01	20 mA	1	10-SMD No Lead	2.2 V	0.3 in	7.62 mm	3.5 mcd	62.5 mW	7-Segment	565 nm	Common Anode	10 mm	0.394 in	0.287 in	3.75 mm	7.3 mm	0.148 "	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ACSA03 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.85V 20mA 0.394" H x 0.287" W x 0.148" D (10.00mm x 7.30mm x 3.75mm) 10-SMD, No Lead
