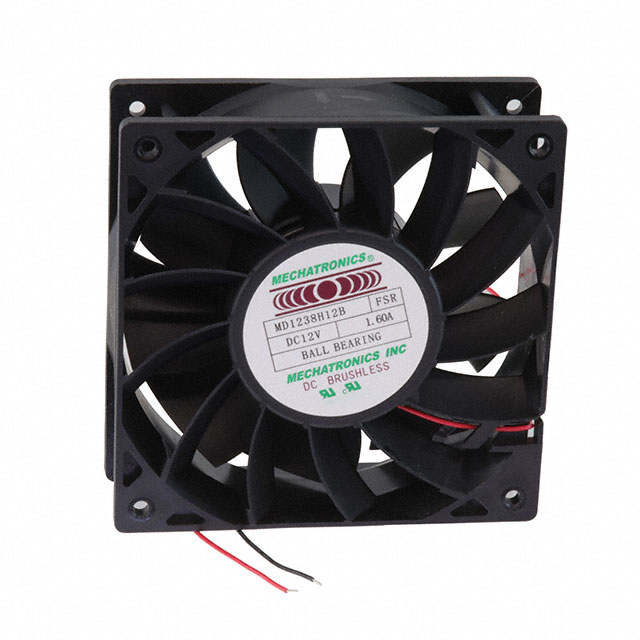

MD1238H12B-FSR-26AWG

Active

Mechatronics Bearing Group

FAN AXIAL 120X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs DC Fan, Blower Lead Wire Spec +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MD1238H12B-FSR-26AWG

Air Flow	174 CFM
Air Flow	4.87 m³/min
Approval Agency	UL, cUL
Bearing Type	Ball
Current Rating (Amps)	1.6 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	57.8 dB(A)
RPM	3800 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	166.9 Pa
Static Pressure	0.67 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Weight	410.95 g
Weight	0.906 lb
Width [y]	38 mm

MD1238 Series

Part	Noise	Fan Type	Air Flow	Air Flow	Material - Blade	Bearing Type	Static Pressure	Static Pressure	Voltage - Rated	Termination	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Features	RPM	Width [y]	Approval Agency	Current Rating (Amps)
Mechatronics Bearing Group MD1238X24B-FSR-CC-L5	62 dB(A)	Tubeaxial	5.74 m³/min	205 CFM	Polybutylene Terephthalate (PBT)	Ball	0.943 in H2O	234.9 Pa	24 VDC	2 Wire Leads	120 mm	120 mm	410.95 g	0.906 lb	Conformal Coating Thermal Overload Protector (TOP)	4500 RPM	38 mm	cUL UL	1.3 A
Mechatronics Bearing Group MD1238X12B-FSR	62 dB(A)	Tubeaxial	5.74 m³/min	205 CFM	Polybutylene Terephthalate (PBT)	Ball	0.943 in H2O	234.9 Pa	12 VDC	2 Wire Leads	120 mm	120 mm	410.95 g	0.906 lb	Thermal Overload Protector (TOP)	4500 RPM	38 mm	cUL UL	2.5 A
Mechatronics Bearing Group MD1238X12B1+6-FSR-EMC-L25	62 dB(A)	Tubeaxial	5.74 m³/min	205 CFM	Polybutylene Terephthalate (PBT)	Ball	0.943 in H2O	234.9 Pa	12 VDC	4 Wire Leads	120 mm	120 mm	410.95 g	0.906 lb	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	4500 RPM	38 mm	cUL UL	2.5 A
Mechatronics Bearing Group MD1238H12B-FSR-26AWG	57.8 dB(A)	Tubeaxial	4.87 m³/min	174 CFM	Polybutylene Terephthalate (PBT)	Ball	0.67 in H2O	166.9 Pa	12 VDC	2 Wire Leads	120 mm	120 mm	410.95 g	0.906 lb	Thermal Overload Protector (TOP)	3800 RPM	38 mm	cUL UL	1.6 A
Mechatronics Bearing Group MD1238X24B-FSR	62 dB(A)	Tubeaxial	5.74 m³/min	205 CFM	Polybutylene Terephthalate (PBT)	Ball	0.943 in H2O	234.9 Pa	24 VDC	2 Wire Leads	120 mm	120 mm	410.95 g	0.906 lb	Thermal Overload Protector (TOP)	4500 RPM	38 mm	cUL UL	1.3 A
Mechatronics Bearing Group MD1238X24B-FS	62 dB(A)	Tubeaxial	5.74 m³/min	205 CFM	Polybutylene Terephthalate (PBT)	Ball	0.943 in H2O	234.9 Pa	24 VDC	2 Wire Leads	120 mm	120 mm	410.95 g	0.906 lb	Thermal Overload Protector (TOP)	4500 RPM	38 mm	cUL UL	1.3 A
Mechatronics Bearing Group MD1238E12B-FSR	59 dB(A)	Tubeaxial	5.38 m³/min	192 CFM	Polybutylene Terephthalate (PBT)	Ball	0.82 in H2O	204.3 Pa	12 VDC	2 Wire Leads	120 mm	120 mm	410.95 g	0.906 lb	Thermal Overload Protector (TOP)	4200 RPM	38 mm	cUL UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MD1238 Series

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 174.0 CFM (4.87m³/min) 2 Wire Leads

Documents

Technical documentation and resources

DC Lead Wire Specs

DC Fan, Blower Lead Wire Spec

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet
