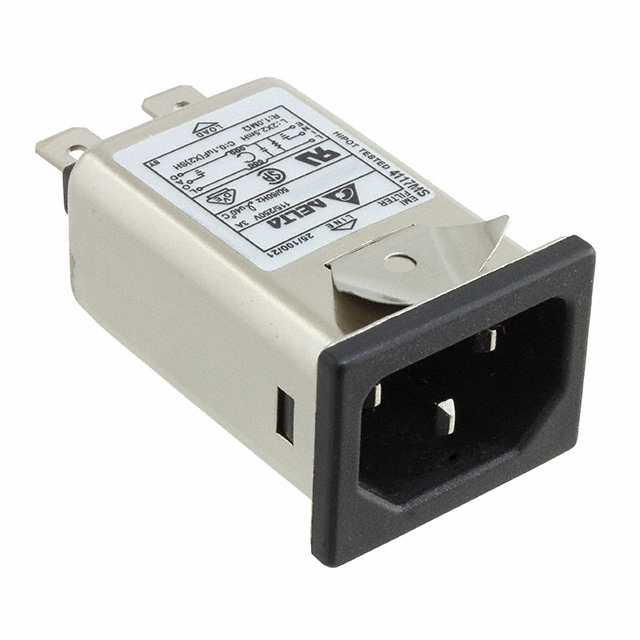

03GENG3EM-R

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	03GENG3EM-R

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	3 A
Current Rating - Filter	3 A
Features	Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Snap-In
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Mounting Type	Connector Type	Filter Type	Current Rating - Filter	Termination	Approval Agency	Connector Style	Current Rating - Appliance Inlet	Features
Delta Electronics 03GENG3EM(H)	29.5 mm	21.5 mm	115 VAC	250 VAC	Panel Mount Snap-In	Male Blades Receptacle	Filtered (EMI RFI) - Commercial Medical	3 A	Quick Connect	CSA UL VDE	IEC 320-C14	3 A	Mounting Clip
Delta Electronics 03GENG3E-R(H)	29.5 mm	21.5 mm	115 VAC	250 VAC	Panel Mount Snap-In	Male Blades Receptacle	Filtered (EMI RFI) - Commercial	3 A	Quick Connect	CSA UL VDE	IEC 320-C14	3 A	Bleed Resistor Mounting Clip
Delta Electronics 03GENG3EM-R(H)	29.5 mm	21.5 mm	115 VAC	250 VAC	Panel Mount Snap-In	Male Blades Receptacle	Filtered (EMI RFI) - Commercial Medical	3 A	Quick Connect	CSA UL VDE	IEC 320-C14	3 A	Bleed Resistor Mounting Clip
Delta Electronics 03GENG3EM			115 VAC	250 VAC	Panel Mount Snap-In	Male Blades Receptacle	Filtered (EMI RFI) - Commercial Medical	3 A	Quick Connect	CSA UL VDE	IEC 320-C14	3 A
Delta Electronics 03GENG3EM-R			115 VAC	250 VAC	Panel Mount Snap-In	Male Blades Receptacle	Filtered (EMI RFI) - Commercial Medical	3 A	Quick Connect	CSA UL VDE	IEC 320-C14	3 A	Bleed Resistor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources
