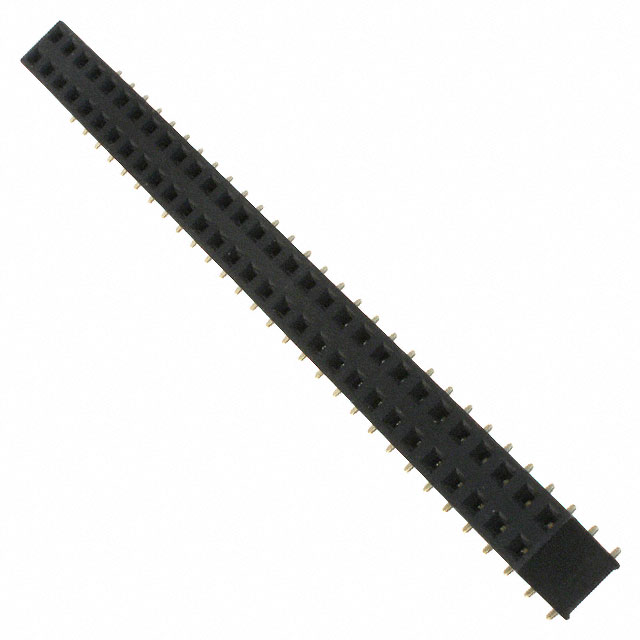

PPPC302KFMS

Obsolete

Sullins Connector Solutions

CONN HDR 60POS 0.1 GOLD SMD

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 60POS 0.1 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PPPC302KFMS

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.299 in
Insulation Height	7.6 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Shape	Contact Finish - Mating	Voltage Rating	Contact Finish Thickness - Mating	Contact Material	Number of Positions	Termination	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Current Rating (Amps)	Fastening Type	Contact Finish Thickness - Post	Number of Positions Loaded	Insulation Color	Contact Type	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Length - Post	Contact Length - Post [x]	Connector Type	Contact Finish - Post	Material Flammability Rating	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PPPC302LFBN-RC	Square	Gold	250 VDC	Flash	Phosphor Bronze	60	Solder	Polyester	-40 °C	105 ░C	0.335 "	8.51 mm	3 A	Push-Pull	Flash	All	Black	Female Socket	0.1 in	2.54 mm	Through Hole	3.2 mm	0.126 in	Header	Gold	UL94 V-0	2	2.54 mm	0.1 in
Sullins Connector Solutions PPPC302LFBN	Square	Gold	250 VDC	Flash	Phosphor Bronze	60	Solder	Polyester	-40 °C	105 ░C	0.335 "	8.51 mm	3 A	Push-Pull	Flash	All	Black	Female Socket	0.1 in	2.54 mm	Through Hole	3.2 mm	0.126 in	Header	Gold	UL94 V-0	2	2.54 mm	0.1 in
Sullins Connector Solutions PPPC302KFMS	Square	Gold	250 VDC	Flash	Phosphor Bronze	60	Solder	Polyester	-40 °C	125 °C	0.299 in	7.6 mm	3 A	Push-Pull	Flash	All	Black	Female Socket	0.1 in	2.54 mm	Surface Mount			Header	Gold	UL94 V-0	2	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

60 Position Header Connector 0.100" (2.54mm) Surface Mount Gold
