G11MH7-P02LPH0-0070

Active

ODU

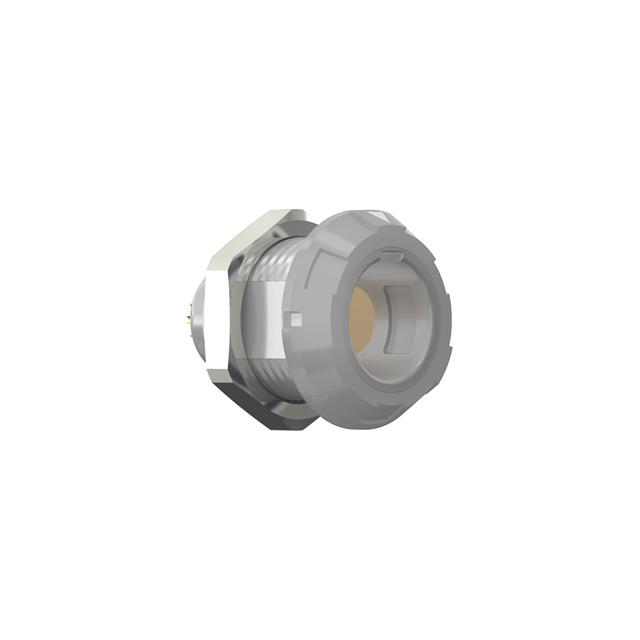

ODU MEDI-SNAP RECEPT.,STY1,SZ1,S

Search across all available documentation for this part.

Active

ODU

ODU MEDI-SNAP RECEPT.,STY1,SZ1,S

Technical Specifications

Parameters and characteristics for this part

Specification	G11MH7-P02LPH0-0070

Applications	Testing Equipment, Medical, Industrial, Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	12 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	H
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded
Voltage Rating	48 VDC

Part	Number of Positions	Contact Material	Ingress Protection	Voltage Rating	Color	Material Flammability Rating	Insert Material	Current Rating (Amps)	Connector Type	Primary Material	Contact Finish - Mating	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Orientation	Applications	Shell Size - Insert	Fastening Type	Shell Material	Mounting Type	Termination
ODU G11MH7-P07LFG0-0040	7	Brass	IP50	33 V	Gray Yellow	UL94 V-0	Polyetheretherketone (PEEK)	7.5 A	Receptacle Female Sockets	Plastic	Gold	Unshielded	-50 °C	120 °C	Bulkhead - Rear Side Nut	H	Industrial Measurement Medical Testing Equipment	1	Detent Lock Push-Pull	Polysulfone (PSU)
ODU G11MH7-P07QF00-0050	7	Brass	IP50	36 VDC	Gray Green	UL94 V-0	Polyetheretherketone (PEEK)	6 A	Receptacle Female Sockets	Plastic	Gold	Unshielded	-50 °C	120 °C	Bulkhead - Rear Side Nut	H	Industrial Measurement Medical Testing Equipment	1	Detent Lock Push-Pull	Polysulfone (PSU)	Panel Mount Through Hole	Solder
ODU G11MH7-P02LPH0-0070	2	Brass	IP50	48 VDC	Gray	UL94 V-0	Polyetheretherketone (PEEK)	12 A	Receptacle Female Sockets	Plastic	Gold	Unshielded	-50 °C	120 °C	Bulkhead - Rear Side Nut	H	Industrial Measurement Medical Testing Equipment	1	Detent Lock Push-Pull	Polysulfone (PSU)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.98

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
