1028155

Obsolete

SICK, Inc.

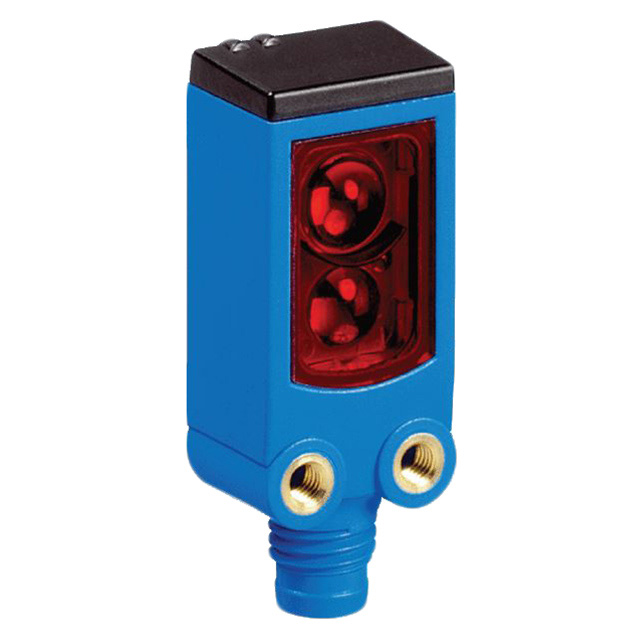

SENSOR RETROREFLECTIVE 3.5M PNP

Search across all available documentation for this part.

Obsolete

SICK, Inc.

SENSOR RETROREFLECTIVE 3.5M PNP

Technical Specifications

Parameters and characteristics for this part

Specification	1028155

Connection Method	Connector, M8, 3POS
Ingress Protection	IP66, IP67
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	500 µs
Sensing Distance [Max]	137.795 in
Sensing Distance [Max]	3.5 m
Sensing Distance [Min]	0.787 "
Sensing Distance [Min]	20 mm
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Light Source	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Connection Method	Output Configuration	Ingress Protection	Sensing Method	Cable Length	Cable Length	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Sensing Distance	Sensing Distance
SICK, Inc. 1028156	RED (650nm)	0.394 "	177.165 in	10 mm	450 cm	Cable	NPN	IP67	Retroreflective	78.74 in	2 m	30 VDC	10 VDC	-40 °C	60 °C	500 µs
SICK, Inc. WL4-3P2230	RED (650nm)					Connector M8	NPN - Dark-ON/Light-ON	IP67 IP69K	Retroreflective			30 VDC	10 VDC	-10 °C	50 °C	200 µs	0.394 in	10 mm
SICK, Inc. 1028155	Red LED	0.787 "	137.795 in	20 mm	3.5 m	Connector M8 3POS	PNP - Dark-ON/Light-ON - Selectable	IP66 IP67	Retroreflective			30 VDC	10 VDC	-40 °C	60 °C	500 µs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Retroreflective Optical Sensor 0.787" ~ 137.795" (20mm ~ 3.5m) PNP - Dark-ON/Light-ON - Selectable
