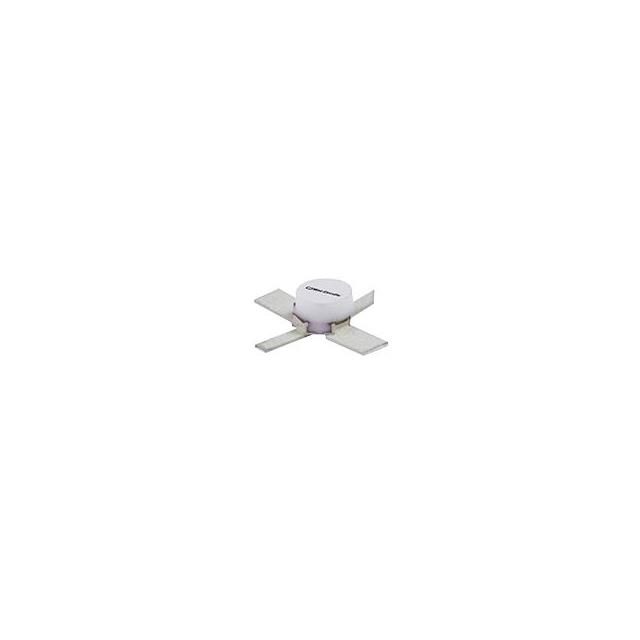

PAT-5+
ActiveMINI-CIRCUITS
ATTENUATOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PAT-5+ |
|---|---|
| Frequency Range [Max] | 7 GHz |
| Frequency Range [Min] | 0 Hz |
| Impedance | 50 Ohms |
| Package / Case | 4-SMD, Flat Leads |
| Power (Watts) | 1 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.11 | |
| 10 | $ 5.82 | |||
| 20 | $ 5.54 | |||
| 50 | $ 5.39 | |||
| 100 | $ 5.24 | |||
| 200 | $ 4.79 | |||
| Digi-Reel® | 1 | $ 6.11 | ||
| 10 | $ 5.82 | |||
| 20 | $ 5.54 | |||
| 50 | $ 5.39 | |||
| 100 | $ 5.24 | |||
| 200 | $ 4.79 | |||
| Tape & Reel (TR) | 1000 | $ 4.16 | ||
| 2000 | $ 4.09 | |||
Description
General part information
PAT-5 Series
RF Attenuators 5dB 0 Hz ~ 7 GHz 50 Ohms 1W 4-SMD, Flat Leads
