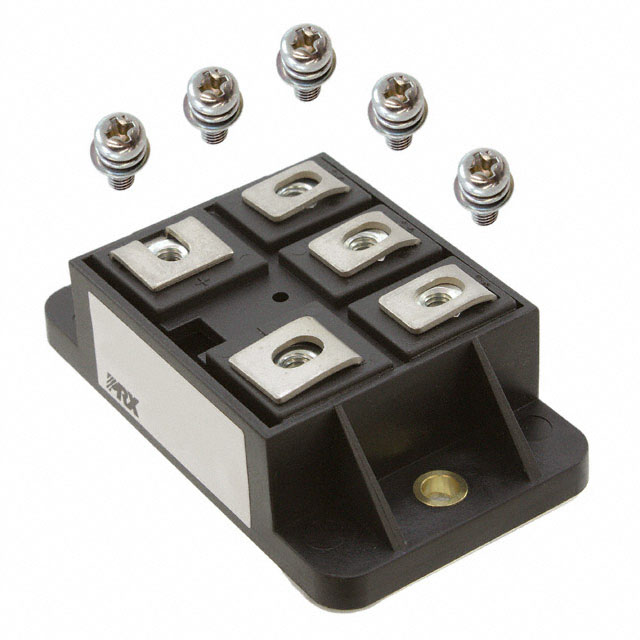

RM20TPM-H

Obsolete

Powerex Inc.

BRIDGE RECT 3P 800V 40A MODULE

Search across all available documentation for this part.

Obsolete

Powerex Inc.

BRIDGE RECT 3P 800V 40A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	RM20TPM-H

Current - Average Rectified (Io)	40 A
Current - Reverse Leakage @ Vr	10 mA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.2 V
Voltage - Peak Reverse (Max) [Max]	800 V

Part	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Mounting Type	Supplier Device Package	Diode Type	Voltage - Peak Reverse (Max)	Package / Case	Current - Average Rectified (Io)	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Voltage - Peak Reverse (Max) [Max]
Powerex Inc. RM20TPM-2H	1.3 V	10 mA	Chassis Mount	Module	Three Phase	1.6 kV	Module	40 A	-40 °C	125 ¯C	Standard
Powerex Inc. RM20TPM-H	1.2 V	10 mA	Chassis Mount	Module	Three Phase		Module	40 A	-40 °C	150 °C	Standard	800 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Three Phase Standard 800 V Chassis Mount Module

Technical documentation and resources

No documents available
