11047-20-1-0500-004-1-TS

Active

CnC Tech, LLC

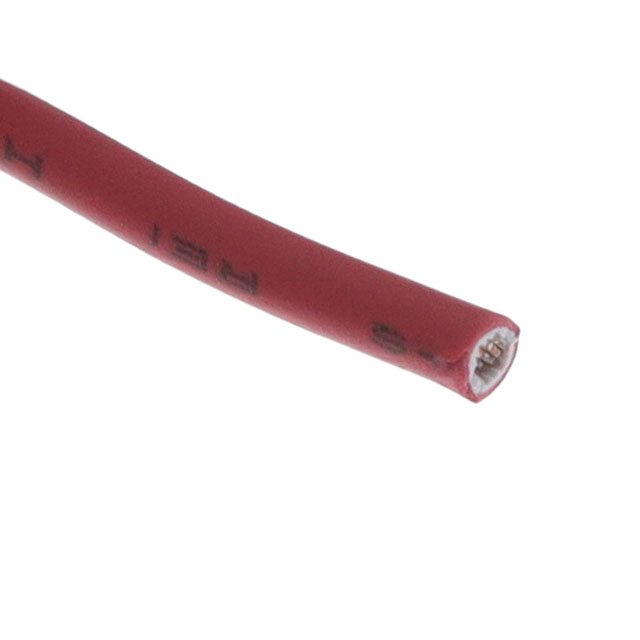

HOOK-UP STRND 20AWG RED 500'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11047-20-1-0500-004-1-TS

Active

CnC Tech, LLC

HOOK-UP STRND 20AWG RED 500'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11047-20-1-0500-004-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	0.0071 in
Conductor Strand [custom]	21
Jacket (Insulation) Diameter [diameter]	1.8 mm
Jacket (Insulation) Diameter [diameter]	0.071 "
Jacket (Insulation) Material	Polyphenylene Ether (PPE)
Jacket (Insulation) Thickness	0.23 mm
Jacket (Insulation) Thickness	0.009 in
Jacket Color	Red
Length	15.24 m
Length [x]	500 ', 100 ft, 50 ft, 25 ft
Length [x]	152.4 m, 30.5 m, 7.62 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style 11047
Voltage	600 V
Wire Gauge	20 AWG

11047-20 Series

Part	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Ratings	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Spool Size	Spool Size
CnC Tech, LLC 11047-20-1-0500-001-1-TS	0.0071 in	21	25 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	0.23 mm	0.009 in	600 V	Polyphenylene Ether (PPE)	1.8 mm	0.071 "	Hook-Up	UL Style 11047	Black	105 ░C	-10 °C	20 AWG	Copper Tinned
CnC Tech, LLC 11047-20-1-0500-011-1-TS	0.0071 in	21	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	0.23 mm	0.009 in	600 V	Polyphenylene Ether (PPE)	1.8 mm	0.071 "	Hook-Up	UL Style 11047	Green Yellow	105 ░C	-10 °C	20 AWG	Copper Tinned	0.08 in	2.03 mm	28	7	15.24 m
CnC Tech, LLC 11047-20-1-0500-012-1-TS					0.23 mm	0.009 in	600 V	Polyphenylene Ether (PPE)			Hook-Up	UL Style 11047	Gray	105 ░C	-10 °C	20 AWG	Copper Tinned	0.08 in	2.03 mm	28	7		Enter Number of Feet in Order Quantity	500 '	152.4 m
CnC Tech, LLC 11047-20-1-0500-005-1-TS	0.0071 in	21	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	0.23 mm	0.009 in	600 V	Polyphenylene Ether (PPE)	1.8 mm	0.071 "	Hook-Up	UL Style 11047	Blue	105 ░C	-10 °C	20 AWG	Copper Tinned					15.24 m
CnC Tech, LLC 11047-20-1-0500-002-1-TS	0.0071 in	21	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	0.23 mm	0.009 in	600 V	Polyphenylene Ether (PPE)	1.8 mm	0.071 "	Hook-Up	UL Style 11047		105 ░C	-10 °C	20 AWG	Copper Tinned					15.24 m
CnC Tech, LLC 11047-20-1-0500-007-1-TS	0.0071 in	21	50 ft 100 ft 500 '	30.5 m 152.4 m	0.23 mm	0.009 in	600 V	Polyphenylene Ether (PPE)	1.8 mm	0.071 "	Hook-Up	UL Style 11047	Green	105 ░C	-10 °C	20 AWG	Copper Tinned					15.24 m
CnC Tech, LLC 11047-20-1-0500-004-1-TS	0.0071 in	21	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	0.23 mm	0.009 in	600 V	Polyphenylene Ether (PPE)	1.8 mm	0.071 "	Hook-Up	UL Style 11047	Red	105 ░C	-10 °C	20 AWG	Copper Tinned					15.24 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 30.66
		1	$ 17.62
		1	$ 118.55
		1	$ 9.57
		2	$ 16.74
		2	$ 9.11
		3	$ 109.68
		3	$ 28.73
		4	$ 8.69
		5	$ 15.68
		5	$ 105.87
		5	$ 27.28
		7	$ 103.34
		10	$ 100.80
		10	$ 8.13
		10	$ 25.98
		10	$ 14.89
		20	$ 7.76
		20	$ 14.19
		25	$ 24.37
		25	$ 94.46
		40	$ 7.39
		50	$ 23.24
		50	$ 89.39
		50	$ 13.30
		100	$ 6.93
		100	$ 85.59
		100	$ 22.11
		100	$ 12.69
		200	$ 6.55
		200	$ 12.07
		400	$ 6.27
		500	$ 11.45

Description

General part information

11047-20 Series

20 AWG Hook-Up Wire 21/0.0071" Red 600V 500.0' (152.4m)
