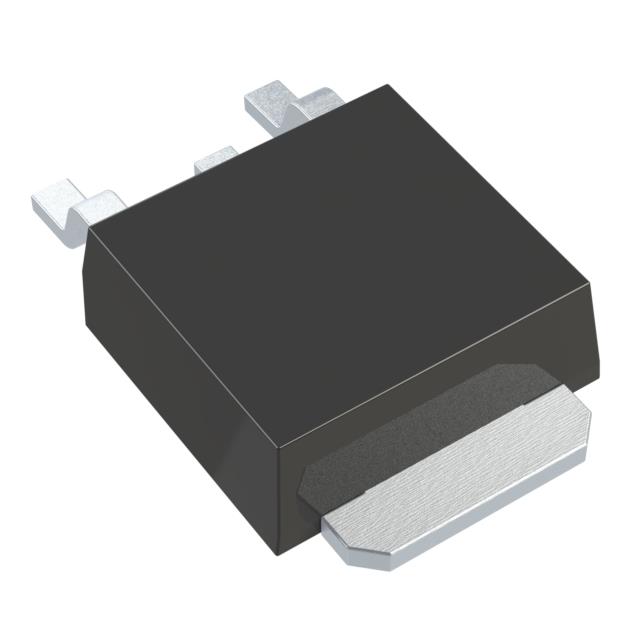

XP70SL1K4AH
ActiveYAGEO XSEMI
MOSFET N-CH 700V 3.2A TO252
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XP70SL1K4AH
ActiveYAGEO XSEMI
MOSFET N-CH 700V 3.2A TO252
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XP70SL1K4AH |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 3.2 A |
| Drain to Source Voltage (Vdss) | 700 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 16.8 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 608 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Power Dissipation (Max) | 28.4 W, 2 W |
| Rds On (Max) @ Id, Vgs | 1.4 Ohm |
| Supplier Device Package | TO-252 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.45 | |
| 6000 | $ 0.43 | |||
| 9000 | $ 0.42 | |||
Description
General part information
XP70SL1K4AH
N-Channel 700 V 3.2A (Tc) 2W (Ta), 28.4W (Tc) Surface Mount TO-252
