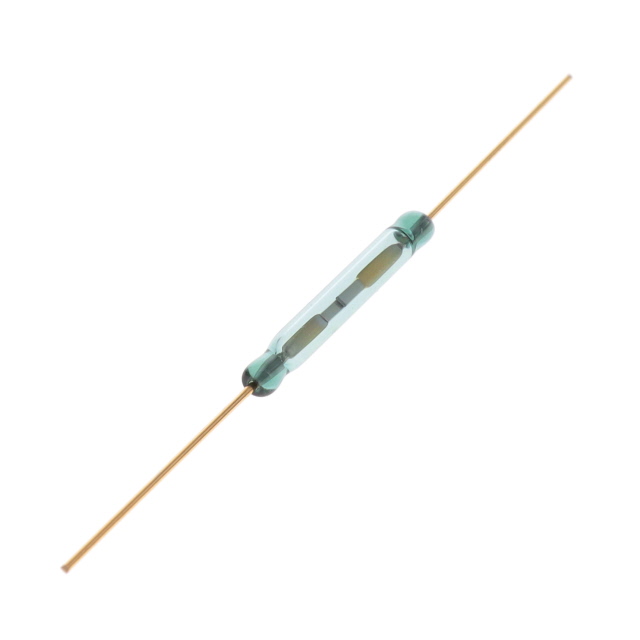

GC2717 - 2530
ActiveComus International
SWITCH REED SPST-NO 500MA 500V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GC2717 - 2530
ActiveComus International
SWITCH REED SPST-NO 500MA 500V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GC2717 - 2530 |
|---|---|
| Capacitance | 0.5 pF |
| Circuit | SPST-NO |
| Current - Carry | 1 A |
| Current - Switching | 500 mA |
| Length - Overall [x] | 2.165 in |
| Length - Overall [x] | 55 mm |
| Mounting Type | Through Hole |
| Operate Range [Max] | 30 AT |
| Operate Range [Min] | 25 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Rated | 10 VA |
| Release Range | 5 AT |
| Release Time | 0.1 ms |
| Size - Body [diameter] | 2.6 mm |
| Size - Body [diameter] | 0.102 in |
| Size - Body [x] | 0.748 in |
| Size - Body [x] | 19 mm |
| Termination Style | Axial |
| Type | Glass Body Reed |
| Voltage - Switching DC | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.92 | |
| 10 | $ 0.86 | |||
| 25 | $ 0.77 | |||
| 50 | $ 0.73 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.68 | |||
Description
General part information
GC2717 Series
Glass Body Reed Switch SPST-NO 25 ~ 30AT Operate Range 10VA 500mA (AC/DC) 500 V Through Hole
