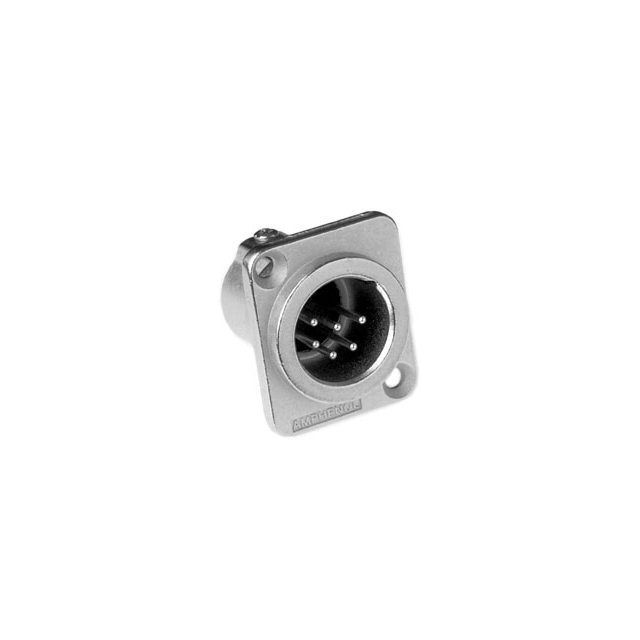

AC6AMDZ BULK

Active

Amphenol Sine Systems Corp

METAL PANEL MOUNT 6 PIN

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

METAL PANEL MOUNT 6 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	AC6AMDZ BULK

Applications	Audio
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP40
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Shielded

Part	Fastening Type	Contact Finish - Mating	Shell Finish	Shielding	Mounting Type	Backshell Material, Plating	Features	Shell Size - Insert	Shell Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Ingress Protection	Color	Applications	Primary Material	Connector Type	Material Flammability Rating	Contact Material	Orientation	Mounting Feature	Insert Material
Amphenol Sine Systems Corp AC6AMB BULK	Latch Holder	Silver	Black	Unshielded	Free Hanging (In-Line)	Polyphenylene Ether (PPE)	Backshell Cable Clamp	XLR	Zinc Die Cast	6	-25 °C	75 ░C	7.5 A	IP40	Black	Audio	Metal	Male Pins Receptacle	UL94 V-0	Brass	Keyed
Amphenol Sine Systems Corp AC6AMDZ BULK	Push-Pull	Silver	Nickel	Shielded			Ground	XLR	Zinc Die Cast	6	-25 °C	75 ░C	7.5 A	IP40	Silver	Audio	Metal	Male Pins Receptacle	UL94 V-0	Brass	Keyed	Flange	Glass Filled Nylon 6/6 Polyamide (PA66)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 8.28

General part information

6 Position Circular Connector Receptacle, Male Pins Solder Cup
