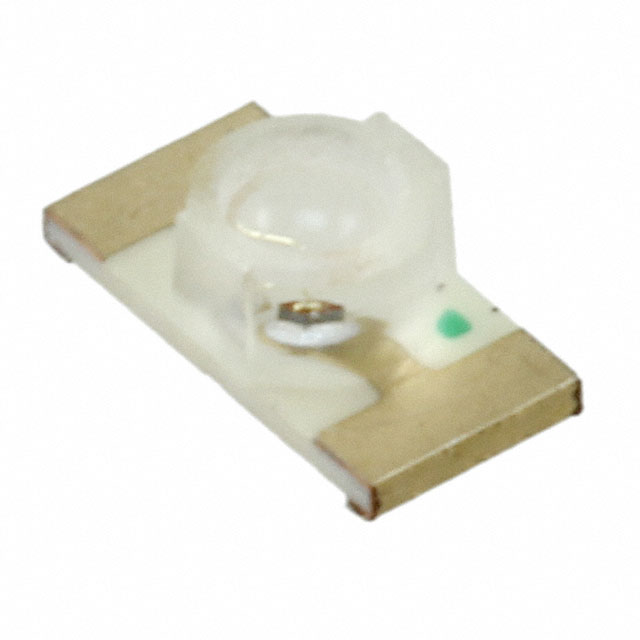

SML-LXLC1206SUGCTR
ActiveLumex Opto/Components Inc.
LED GREEN CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
SML-LXLC1206SUGCTR
ActiveLumex Opto/Components Inc.
LED GREEN CLEAR SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-LXLC1206SUGCTR |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.6 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 100 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 70 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.18 | |||
| 1000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.18 | |||
| 1000 | $ 0.14 | |||
| Tape & Reel (TR) | 2000 | $ 0.13 | ||
| 6000 | $ 0.12 | |||
| 10000 | $ 0.11 | |||
| 50000 | $ 0.10 | |||
| 100000 | $ 0.10 | |||
Description
General part information
SML-LXLC1206 Series
Green LED Indication - Discrete 2.1V 1206 (3216 Metric)
Documents
Technical documentation and resources
No documents available
